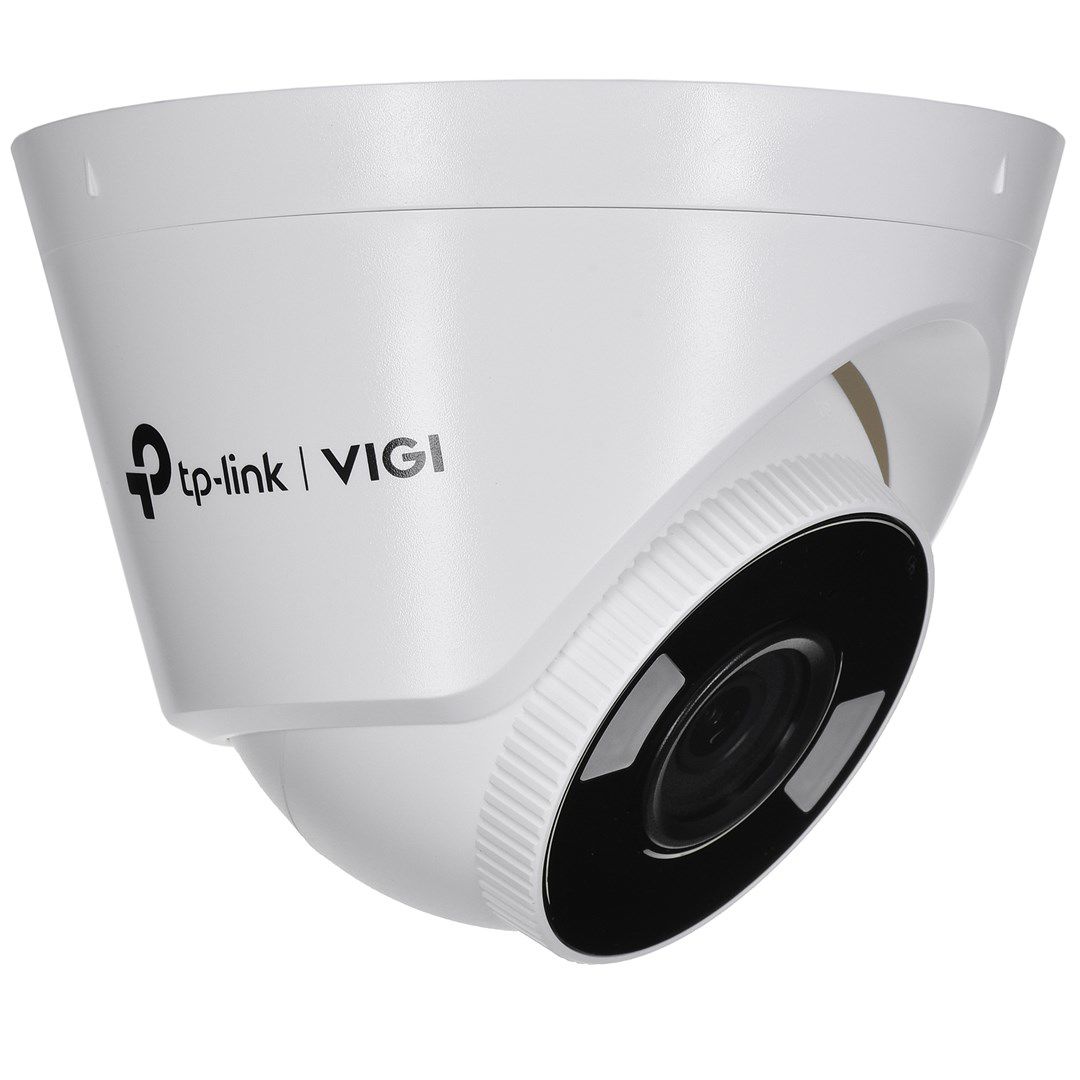

TP-LINK VIGI C430(4mm) camera

Design
Housing material: Plastic
Product colour: Black, White
Mounting type: Ceiling
Form factor: Dome

Power
Power source type: DC, PoE
DC output voltage: 12

Security
Password reset via email: Yes
Digest authentication: Yes
Mirror: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection

Weight & dimensions
Height: 123 mm
Width: 123 mm
Depth: 83 mm

Network
Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet
Certification: CE/BSMI/VCCI/ONVIF

Performance
Type: IP security camera
Day/night mode: Yes
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired

Packaging content
Mounting kit: Yes
Number of cameras: 1

Storage
Built-in HDD: No

Camera
Lens viewing angle, diagonal: 106.9°
Lens viewing angle, horizontal: 89.1°
Lens viewing angle, vertical: 45.1°
Minimum illumination: 0.005 lx

Image sensor
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")

Video
Smart IR: Yes
Back Light Compensation (BLC): Yes
Frame rate: 30 fps
Image quality adjustment: Sharpness, Contrast, Brightness
Video compression formats: H.265+, H.264, H.265, H.264+
Privacy masking: Yes
Video streaming: Yes
Highlight Compensation (HLC): Yes
Noise reduction technology: 3D noise reduction
Bit rate: 64 Kbps to 4 Mbps
Maximum resolution: 2304 x 1296 pixels
Total megapixels: 3 MP
Noise reduction: Yes

Night vision
LED type: IR
Night vision: Yes
Night vision distance: 30 m

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Lens diameter: 4 mm

Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
