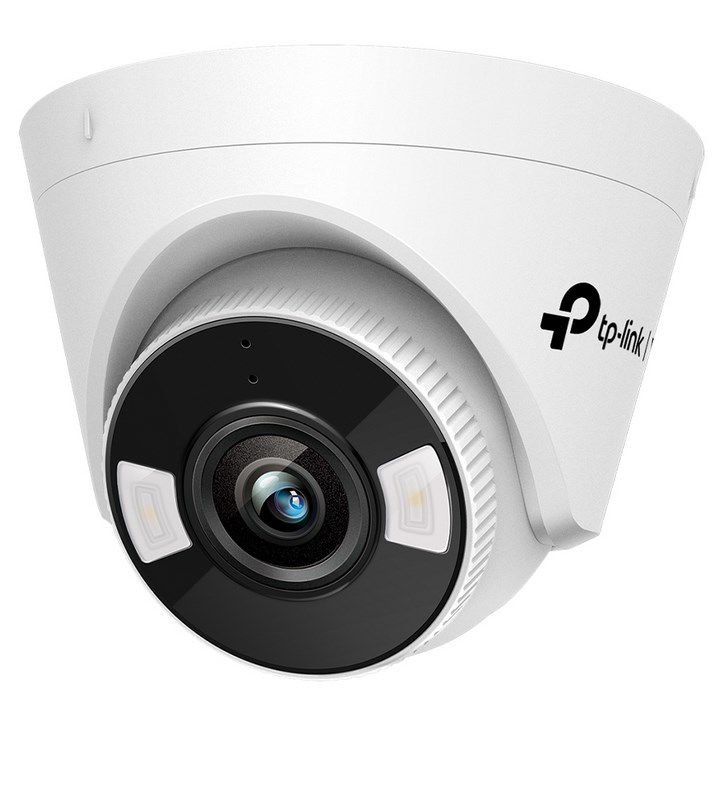

TP-Link VIGI C430 Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling

Design
Mounting type: Ceiling
Product colour: White, Black
Form factor: Dome
Housing material: Plastic

Power
Power source type: DC, PoE
DC output voltage: 12

Security
Password reset via email: Yes
Mirror: Yes
Digest authentication: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Password protection: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection
Web browser: Yes

Weight & dimensions
Width: 123 mm
Depth: 83 mm
Height: 123 mm

Network
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet interface type: Fast Ethernet
Certification: CE/BSMI/VCCI/ONVIF

Performance
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired
Type: IP security camera
Day/night mode: Yes

Packaging content
Number of cameras: 1
Mounting kit: Yes

Storage
Built-in HDD: No

Camera
Lens viewing angle, horizontal: 89.1°
Lens viewing angle, diagonal: 106.9°
Lens viewing angle, vertical: 45.1°
Minimum illumination: 0.005 lx

Image sensor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Sensor type: CMOS
Progressive scan: Yes
Number of sensors: 1

Video
Privacy masking: Yes
Total megapixels: 3 MP
Noise reduction technology: 3D noise reduction
Back Light Compensation (BLC): Yes
Maximum resolution: 2304 x 1296 pixels
Bit rate: 64 Kbps to 4 Mbps
Highlight Compensation (HLC): Yes
Smart IR: Yes
Image quality adjustment: Brightness, Contrast, Sharpness
Video streaming: Yes
Noise reduction: Yes
Video compression formats: H.265, H.265+, H.264+, H.264
Frame rate: 30 fps

Night vision
Night vision: Yes
LED type: IR
Night vision distance: 30 m

Lens system
Lens diameter: 4 mm
Number of lenses: 1
Maximum aperture number: 1.6

Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
