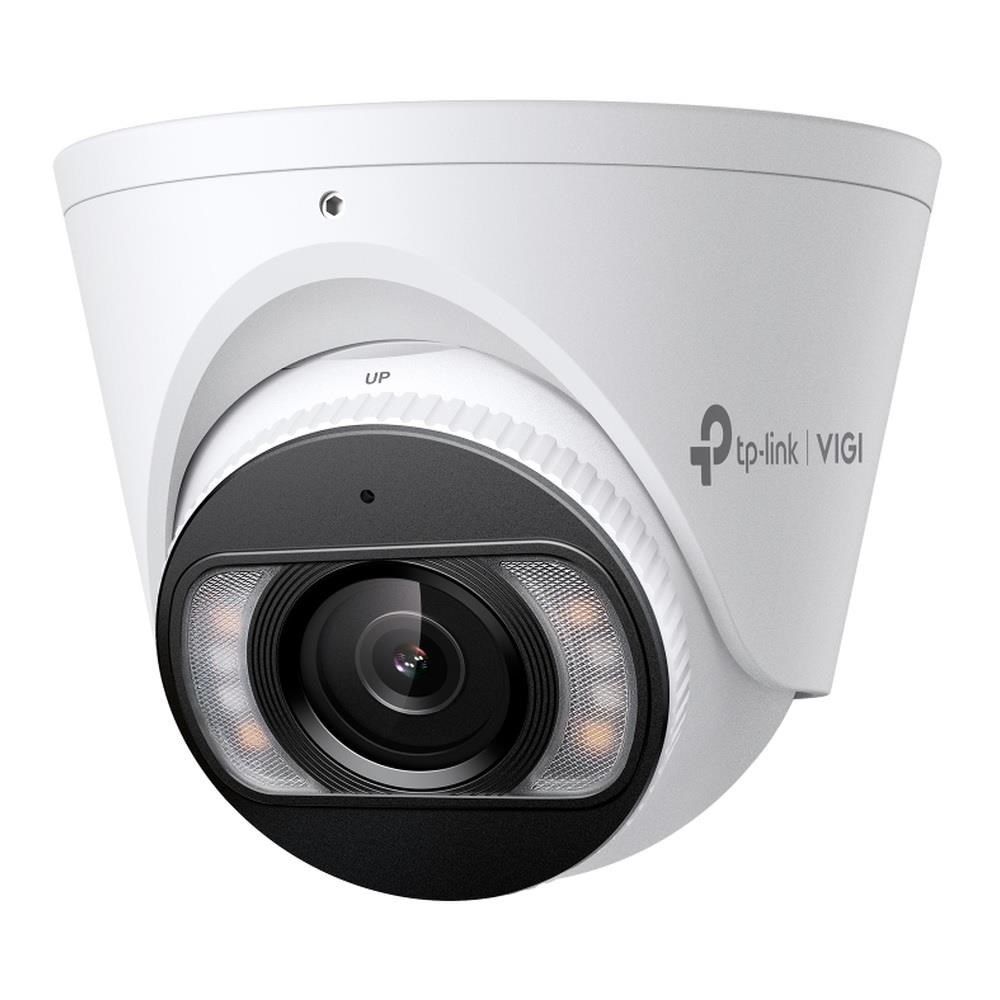

TP-Link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling /wall

Design
Form factor: Turret
Product colour: White
Housing material: Plastic, Metal
International Protection (IP) code: IP67
Mounting type: Ceiling/wall

Power
Power consumption (max): 10.1 W
Power source type: DC

Security
Privacy protection: Yes
Password protection: Yes
IP address filtering: Yes
Digest authentication: Yes

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions
Height: 83.7 mm
Weight: 480 g
Depth: 111 mm
Width: 111 mm

Network
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet interface type: Fast Ethernet

Performance
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Connectivity technology: Wired
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Placement supported: Indoor & outdoor

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Bit rate range: 64 - 64 Kbit/s
Built-in speaker(s): Yes
Signal-to-Noise Ratio (SNR): 52 dB
Sample rate: 8 kHz

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Minimum illumination: 0.005 lx
Tilt angle range: 0 - 85°
Pan range: 0 - 360°
Camera pan control: Yes
Camera shutter speed: 1/3 - 1/10000 s
Lens viewing angle, horizontal: 80.4°
Lens viewing angle, vertical: 41.8°
Camera tilt control: Yes
Number of Privacy masking areas: 4
Lens viewing angle, diagonal: 98.7°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Total megapixels: 4 MP
Supported graphics resolutions: 2304 x 1296, 2048 x 1280, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2550 x 1440, 2688 x 1520
Maximum resolution: 2688 x 1520 pixels
Bit rate: 6 Mbps
Smart IR: Yes
Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Region of Interest (ROI) encoding: Yes
Frame rate: 60 fps
Video compression formats: H.265+, H.264, H.264+, H.265
Noise reduction technology: 3D noise reduction
Noise reduction: Yes

Night vision
LED type: IR
Number of illumination LEDs: 4
Night vision distance: 30 m
Infra-red wavelength: 850 nm
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Observe distance: 33 m
Number of lenses: 1
Focal length range: 4 mm
Fixed focal length: 4 mm
Recognize distance: 16 m
Minimum aperture number: 1.6
Lens diameter: 4 mm
Identify distance: 8 m
Detect distance: 80 m
