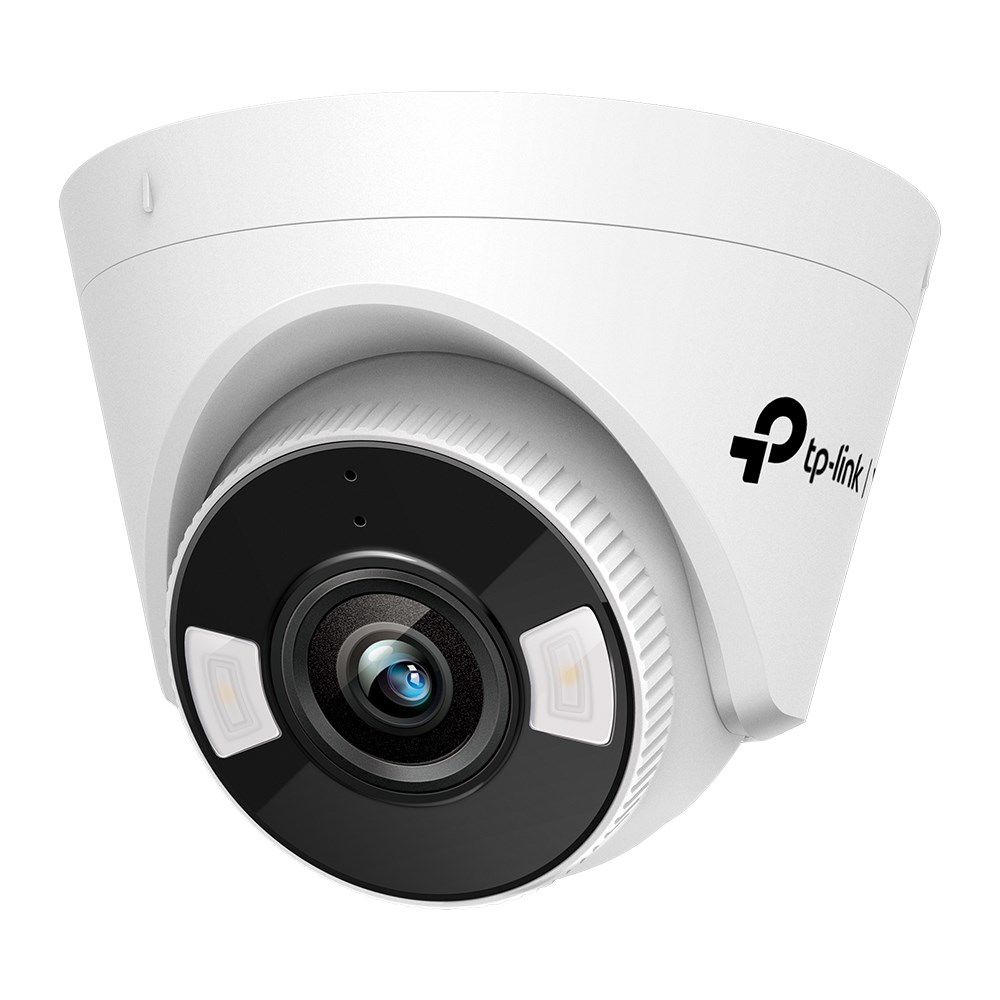

TP-LINK VIGI C450(2.8mm) VIGI 5MP Full-Color Turret Network Camera TP-LINK

Design
Form factor: Turret
Housing material: Plastic
Mounting type: Ceiling
Product colour: White, Black

Power
Power consumption (max): 9 W
DC output voltage: 12
Power source type: DC
Power consumption (Power over Ethernet (PoE)): 10.5 W

Security
Active tampering alarm: Yes
IP address filtering: Yes
Password protection: Yes
Video motion detection: Yes
HTTPS encryption: Yes
Digest authentication: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C

Management features
Reset button: Yes
Web browser: Yes
Cloud-managed: Yes

Weight & dimensions
Weight: 240 g
Diameter: 12.3 cm
Height: 84 mm

Network
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 6 channels
Client interoperability: VIGI App, VIGI Security Manager, Web UI
Live view: Yes
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Bluetooth: No
Certification: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Performance
Day/night mode: Yes
Built-in light: Yes
Dynamic range: 120 dB
Infrared (IR) cut-off filter: Yes
Type: IP security camera
Placement supported: Indoor
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired

Packaging data
Package type: Box
Package weight: 400 g

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 52 dB
Voice codecs: G.711
Built-in speaker(s): Yes
Audio system: 2-way
Built-in microphone: Yes
Sample rate: 8 kHz
Bit rate range: 0 - 64 Kbit/s

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Camera
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/10000 s
Minimum illumination: 0.005 lx
Lens viewing angle, vertical: 57°
Lens viewing angle, diagonal: 128°
Lens viewing angle, horizontal: 109°
Tilt angle range: 0 - 85°
Number of Privacy masking areas: 4

Image sensor
Progressive scan: Yes
Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Video
Video formats supported: H.265+, H.265, H.264+, H.264
Supported video modes: 720p, 2880p, 1080p, 2560p
Supported graphics resolutions: 2688 x 1520, 1280 x 720 (HD 720), 2048 x 1280, 2880 x 1620, 1920 x 1080 (HD 1080), 2304 x 1296
Bit rate: 64 Kbps - 6 Mbps
Bit rate control: Variable Bit Rate (VBR)
Image quality adjustment: Sharpness, Contrast, Brightness, Saturation
Smart IR: Yes
Back Light Compensation (BLC): Yes
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Region of Interest (ROI) encoding: Yes
Video recording: Yes
Total megapixels: 5 MP
Maximum resolution: 2880 x 1620 pixels
Frame rate: 30 fps
Highlight Compensation (HLC): Yes

Night vision
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes
Number of illumination LEDs: 2
Night vision distance: 30 m

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Identify distance: 6 m
Recognize distance: 13 m
Observe distance: 27 m
Detect distance: 64 m
Fixed focal length: 2.8 mm

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.

Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
