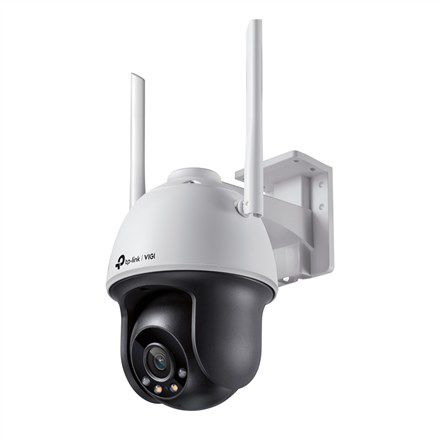

TP-LINK VIGI C540-W(4mm) camera

Features
Basic event: Motion Detection, Camera Tampering Detection, Exception

Design
Housing material: Plastic
Mounting type: Ceiling/wall
Product colour: Black, White
International Protection (IP) code: IP66
Form factor: Turret

Power
DC output voltage: 12
Power source type: DC

Security
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Human detection
Mirror: Yes
Password protection: Yes
Digest authentication: Yes
IP address filtering: Yes
Security algorithms: WPA2-PSK, WPA

Operational conditions
Operating temperature (T-T): -30 - 60 °C

Management features
Behavior analysis: Intrusion detection, Line crossing detection
Reset button: Yes

Weight & dimensions
Height: 198 mm
Depth: 172 mm
Width: 120 mm

Network
Ethernet interface type: Fast Ethernet
Number of simultaneous live view channels: 3 channels
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Live view: Yes
Bluetooth: No
Wi-Fi standards: 802.11b, Wi-Fi 4 (802.11n), 802.11g
Wi-Fi: Yes
Certification: RCM, BSMI, VCCI, NCC, JRF, KC

Performance
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Type: IP security camera

Packaging data
Package depth: 243 mm
Package width: 163 mm
Package height: 243 mm
Package weight: 1.21 kg

Packaging content
Number of cameras: 1
Mounting kit: Yes

Audio
Built-in speaker(s): Yes
Built-in microphone: Yes

Storage
Maximum memory card size: 256 GB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Tilt speed: 44 °/sec
Lens viewing angle, vertical: 43°
Pan speed: 44 °/sec
Camera tilt control: Yes
Camera pan control: Yes
Pan range: 0 - 350°
Lens viewing angle, diagonal: 93°
Lens viewing angle, horizontal: 79°
Tilt angle range: 0 - 120°

Image sensor
Progressive scan: Yes
Sensor type: CMOS
Optical sensor size: 25.4 / 3 mm (1 / 3")

Video
Image quality adjustment: Sharpness, Saturation, Contrast, Mirror, Brightness
Frame rate: 30 fps
Noise reduction technology: 3D noise reduction
Video compression formats: H.265, H.264+, H.265+, H.264
Privacy masking: Yes
Total megapixels: 4 MP
Bit rate: 256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR): Yes
Video streaming: Yes
Noise reduction: Yes
Maximum resolution: 2560 x 1440 pixels
Supported graphics resolutions: 2560 x 1440, 320 x 240, 2304 x 1296, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 2048 x 1280, 352 x 288

Night vision
Night vision: Yes
LED type: IR
Night vision distance: 30 m
Infra-red wavelength: 850 nm

Lens system
Zoom capability: Yes
Number of lenses: 1
Recognize distance: 16 m
Identify distance: 8 m
Lens diameter: 4 mm
Detect distance: 80 m
Observe distance: 33 m

Sustainability
Compliance certificates: RoHS, CE
