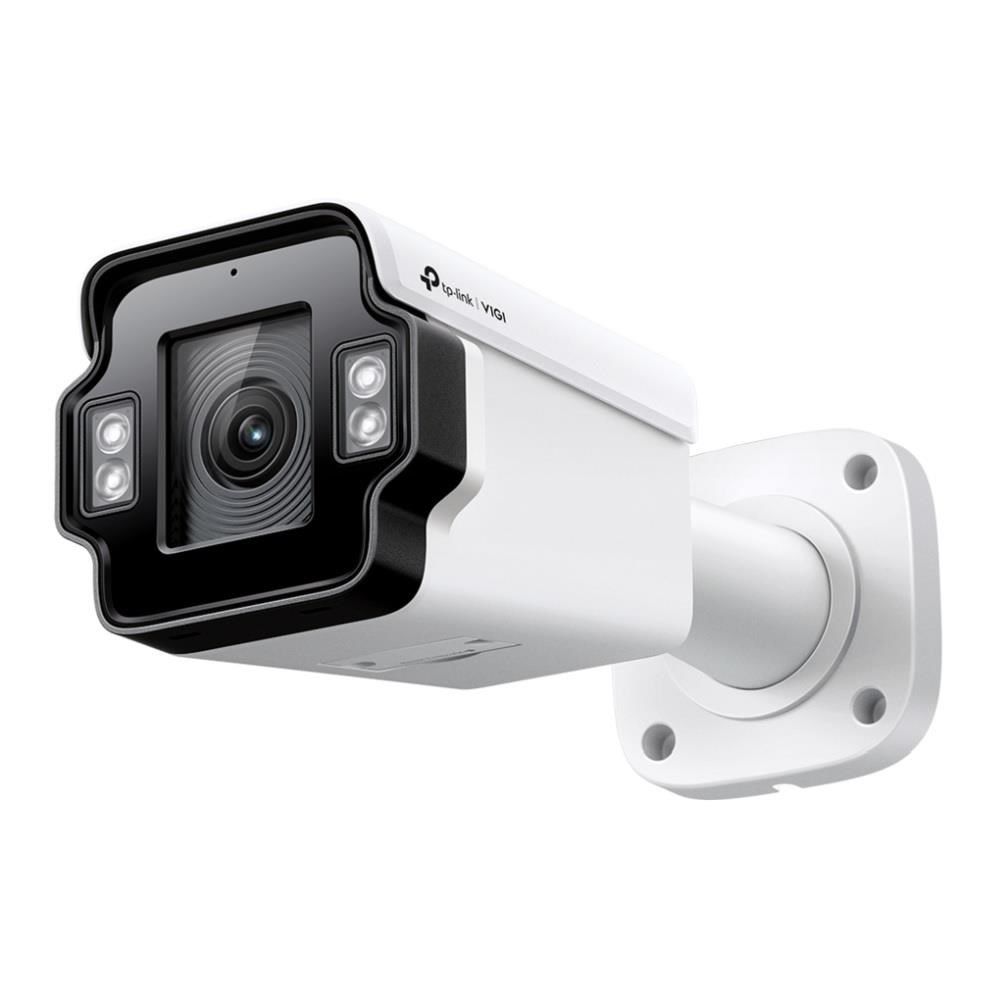

TP-Link VIGI InSight S345ZI Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

Design
Form factor: Bullet
Protection features: Waterproof
Product colour: White
Housing material: Metal
International Protection (IP) code: IP67
Mounting type: Wall
Weatherproof: Yes

Power
Power source type: DC, PoE
Power consumption (max): 10.8 W
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12

Security
Alarm output channels: 1
Alarm input channels: 1
Mirror: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Built-in siren: Yes
Video motion detection: Yes
Alert notification type: Push notification
Motion sensor: Yes
Password protection: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes

Operational conditions
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Storage relative humidity (H-H): 0 - 95%
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Web-based management: Yes
Web browser: Yes
Cloud-managed: Yes

Weight & dimensions
Height: 101 mm
Length: 256 mm
Width: 100 mm
Weight: 1.04 kg

Network
Wi-Fi: No
Bluetooth: No
Networking standards: IEEE 802.3at, IEEE 802.3af
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Number of simultaneous live view channels: 6 channels
Live view: Yes

Performance
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Type: IP security camera
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Outdoor
Remote viewing: Yes
Dynamic range: 120 dB

Packaging data
Package type: Box

Packaging content
Number of cameras: 1

Audio
Signal-to-Noise Ratio (SNR): 52 dB
Audio output channels: 1.0 channels
Audio system: 2-way
Built-in microphone: Yes
Audio formats supported: G.711 A-law
Audio input channels: 1.0 channels
Audio detection: Yes
Number of microphones: 1
Bit rate range: 0 - 64 Kbit/s
Sample rate: 8 kHz

Storage
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Maximum memory card size: 512 GB

Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Pan range: 0 - 360°
Minimum illumination: 0 lx
Camera shutter speed: 1/3 to 1/10000
Angle of rotation: 360°
Tilt angle range: 0 - 90°
Lens viewing angle, vertical: 16.8–53.8
Lens viewing angle, diagonal: 34.1–122.8
Lens viewing angle, horizontal: 29.6–102

Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Video
Maximum resolution: 2688 x 1520 pixels
Bit rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Noise reduction: Yes
Supported graphics resolutions: 2560 x 1440, 2304 x 1296, 2688 x 1520, 2048 x 1280, 1920 x 1080 (HD 1080)
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video compression formats: H.264, H.265+, H.264+, H.265
Image quality adjustment: Contrast, Mirror, Saturation, Sharpness, Brightness
Video recording: Yes
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Night vision
Number of illumination LEDs: 4
LED type: IR
Night vision distance: 10 m
Night vision: Yes
Infra-red wavelength: 850 nm

Lens system
Optical zoom: 5x
Focal length range: 2.7 - 13.5 mm
Zoom capability: Yes
Detect distance (wide): 66 m
Observe distance (wide): 28 m
Focus: Motorized
Identify distance (tele): 21 m
Recognize distance (wide): 13 m
Number of lenses: 1
Observe distance (tele): 86 m
Identify distance (wide): 7 m
Detect distance (tele): 207 m
Recognize distance (tele): 41 m
Maximum aperture number: 1.6
