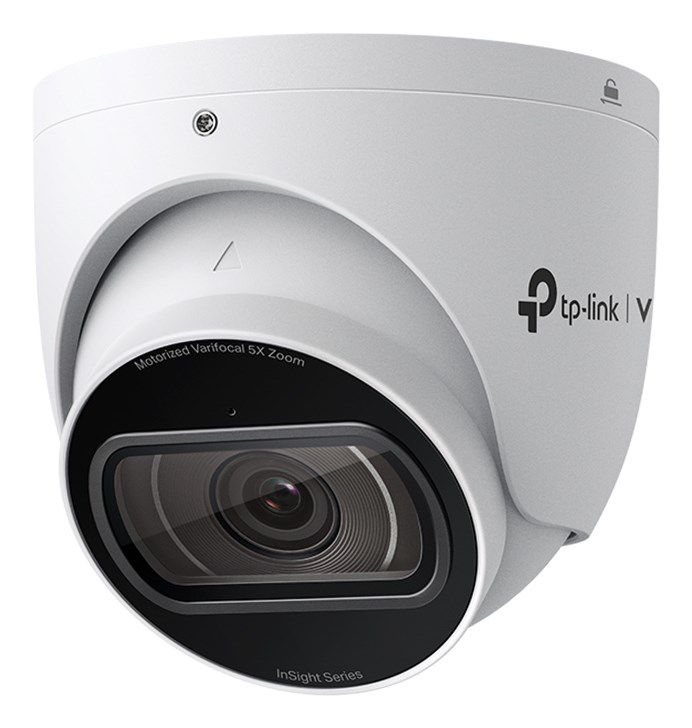

TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling

Design
Weatherproof: Yes
Mounting type: Ceiling
Housing material: Metal
Product colour: White
Form factor: Turret
Protection features: Waterproof
International Protection (IP) code: IP67

Power
Power consumption (Power over Ethernet (PoE)): 12 W
DC output voltage: 12
Power consumption (max): 10.8 W
Power source type: DC, PoE

Security
Alert notification type: Push notification
Privacy protection: Yes
Motion sensor: Yes
Video motion detection: Yes
Alarm input channels: 1
Mirror: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Alarm output channels: 1
Password protection: Yes
Built-in siren: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Storage temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Cloud-managed: Yes
Web browser: Yes
Reset button: Yes

Weight & dimensions
Height: 92.5 mm
Diameter: 11.2 cm
Weight: 710 g

Network
Live view: Yes
Networking standards: IEEE 802.3at, IEEE 802.3af
Ethernet LAN: Yes
Bluetooth: No
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi: No
Number of simultaneous live view channels: 6 channels

Performance
Placement supported: Outdoor
Remote viewing: Yes
Dynamic range: 120 dB
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes

Packaging data
Package type: Box
Package weight: 960 g

Packaging content
Screws included: Yes
Number of cameras: 1
Mounting kit: Yes
Manual: Yes
Drilling template included: Yes

Audio
Audio input channels: 1.0 channels
Number of microphones: 1
Sample rate: 8 kHz
Audio formats supported: G.711 A-law
Signal-to-Noise Ratio (SNR): 52 dB
Audio system: 2-way
Audio output channels: 1.0 channels
Built-in microphone: Yes
Bit rate range: 0 - 64 Kbit/s

Storage
Maximum memory card size: 512 GB
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1

Camera
Camera shutter speed: 1/3 to 1/10000
Pan range: 0 - 360°
Tilt angle range: 0 - 77°
Angle of rotation: 360°
Minimum illumination: 0 lx
Number of Privacy masking areas: 4
Lens viewing angle, vertical: 16.8–53.8
Lens viewing angle, diagonal: 34.1–122.8
Lens viewing angle, horizontal: 29.6–102

Image sensor
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Sensor type: CMOS

Video
Video compression formats: H.264+, H.264, H.265+, H.265
Image quality adjustment: Sharpness, Contrast, Mirror, Saturation, Brightness
Video recording: Yes
Smart IR: Yes
Noise reduction technology: 3D noise reduction
Video streaming: Yes
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction: Yes
Supported graphics resolutions: 2048 x 1280, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080 (HD 1080)
Bit rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Total megapixels: 4 MP
Digital Wide Dynamic Range (DWDR): Yes
Maximum resolution: 2688 x 1520 pixels
Highlight Compensation (HLC): Yes
Back Light Compensation (BLC): Yes

Night vision
Infra-red wavelength: 850 nm
Night vision: Yes
LED type: IR
Number of illumination LEDs: 4
Night vision distance: 60 m

Lens system
Optical zoom: 5x
Observe distance (wide): 28 m
Maximum aperture number: 1.6
Detect distance (tele): 207 m
Auto focus: Yes
Identify distance (wide): 7 m
Focus: Motorized
Focal length range: 2.7 - 13.5 mm
Identify distance (tele): 21 m
Recognize distance (wide): 13 m
Zoom capability: Yes
Observe distance (tele): 86 m
Recognize distance (tele): 41 m
Detect distance (wide): 66 m
Number of lenses: 1
