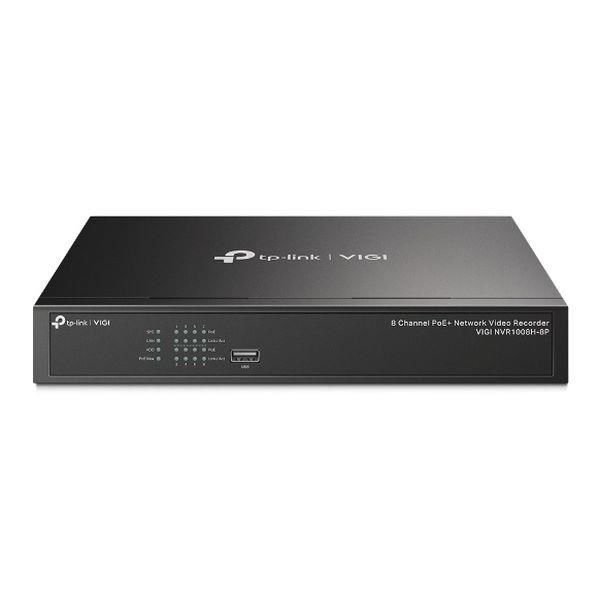

TP-LINK VIGI NVR1008H-8P 8-Channel PoE+ NVR

Features
LED indicators: LAN, System, HDD, PoE
Product colour: Black
Rack mounting: Yes

Power
Output voltage: 53.5 V
Output current: 1.31 A
Power consumption (max): 12.94 W
Total Power over Ethernet (PoE) budget: 53 W

Operational conditions
Operating temperature (T-T): -10 - 55 °C

Weight & dimensions
Package type: Box
Depth: 180 mm
Width: 294 mm
Height: 44 mm
Supported resolutions: 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 102 4x 768, 1280 x 720

Performance
Maximum resolution: 3840 x 2160 pixels
Video recording modes: 1080p, 720p
Video formats supported: H.264+, H.265, H.265+, H.264
Output bandwidth: 60 Mbit/s
Audio system: 2-way
Number of simultaneously playbacked channels: 8 channels
Video input channels: 8 channels
Input bandwidth: 80 Mbit/s

Packaging content
AC adapter included: Yes
Quick installation guide: Yes

Ports & interfaces
Power over Ethernet (PoE) ports quantity: 8
Audio RCA inputs: 1
USB 2.0 ports quantity: 2
Networking standards: IEEE 802.3at, IEEE 802.3af
Audio RCA outputs: 1
HDMI ports quantity: 1
Power over Ethernet (PoE): Yes
Ethernet LAN data rates: 100, 10
Ethernet LAN (RJ-45) ports: 1
Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
DC-in jack: Yes
VGA (D-Sub) output ports: 1

Hard drive
HDD interface: SATA
HDD capacity: 0 GB
Maximum storage capacity: 10 TB
Number of HDDs supported: 1
