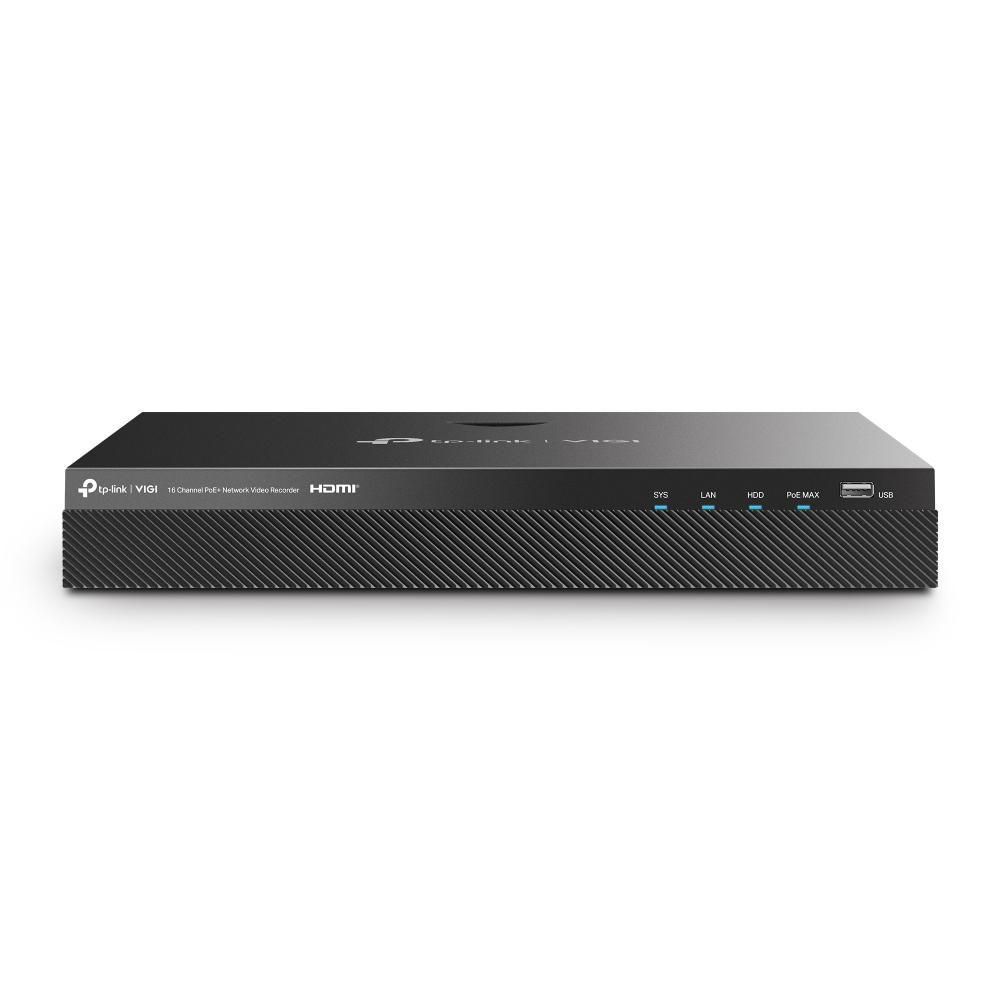

TP-Link VIGI NVR2016H-16P network video recorder Black

Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Features
Product colour: Black
Reset button: Yes

Power
Output voltage: 53.5 V
Power consumption (max): 40 W
Total Power over Ethernet (PoE) budget: 90 W
Output current: 2.43 A

Operational conditions
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): -10 - 55 °C

Weight & dimensions
Weight: 1.9 kg
Width: 330 mm
Package weight: 3.2 kg
Height: 45 mm
Depth: 285 mm
Supported resolutions: HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz

Performance
Maximum resolution: 3840 x 2160 pixels
Video recording modes: 720p, 1080p
Number of simultaneously playbacked channels: 16 channels
Output bandwidth: 60 Mbit/s
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Maximum frame rate: 30 fps
Audio formats supported: G.726, G.711 A-law, G.711 μ-law
Input bandwidth: 80 Mbit/s
Playback controls: Yes
Video motion detection: Yes
Video formats supported: H.264, H.264+, H.265+, H.265
Recording modes: Manual, Schedule
Video input channels: 16 channels

Packaging content
Quick installation guide: Yes
AC adapter included: Yes
Cables included: AC

Wireless LAN features
Wi-Fi: No

Ports & interfaces
eSATA ports quantity: 1
Power over Ethernet (PoE): Yes
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN data rates: 10, 1000 Mbit/s, 100
DC-in jack: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
VGA (D-Sub) output ports: 1
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)
Audio output: 1
Power over Ethernet (PoE) ports quantity: 16
eSATA: Yes
Line-in: Yes
Internal SATA ports quantity: 2

Hard drive
HDD interface: SATA
HDD capacity: 0 GB
Number of HDDs supported: 2
Maximum storage capacity: 10 TB
