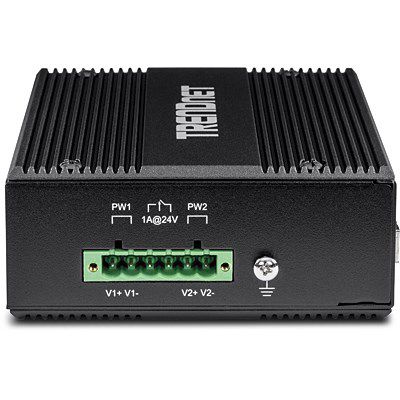

Trendnet TI-UPG62 network switch Unmanaged L2 Gigabit Ethernet (10 /100 /1000) Power over Ethernet (PoE) Black

Design
DIN rail mounting: Yes
International Protection (IP) code: IP30
Product colour: Black
LED indicators: Yes
Wall mountable: Yes
Rack mounting: No
Housing material: Metal

Power
Redundant power supply (RPS) support: Yes
Input voltage: 48 - 56 V
Power consumption (max): 5.76 W
Power protection features: Overload

Operational conditions
Operating temperature (T-T): -40 - 75 °C

Management features
Switch layer: L2
Switch type: Unmanaged

Weight & dimensions
Depth: 105 mm
Height: 36 mm
Width: 143 mm
Weight: 514 g

Network
Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support: Yes
Auto-negotiation: Yes
MAC address auto-aging supported: Yes
Full duplex: Yes
MAC address auto-learning supported: Yes

Packaging data
Terminal block included: Yes
Mounting brackets included: Yes

Packaging content
Quick start guide: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 4
Gigabit Ethernet (copper) ports quantity: 4

Other features
Terminal block port: Yes

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
Jumbo frames: 9000
Switching capacity: 12 Gbit/s
Throughput: 8.9 Mpps
MAC address table: 1024 entries
Store-and-forward: Yes
Jumbo frames support: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 240 W
Power over Ethernet plus (PoE+) ports quantity: 4
