Indoor dual-band WiFi 6 access point capable of supporting more than 300 clients with a total throughput speed of 5.3 Gbps.

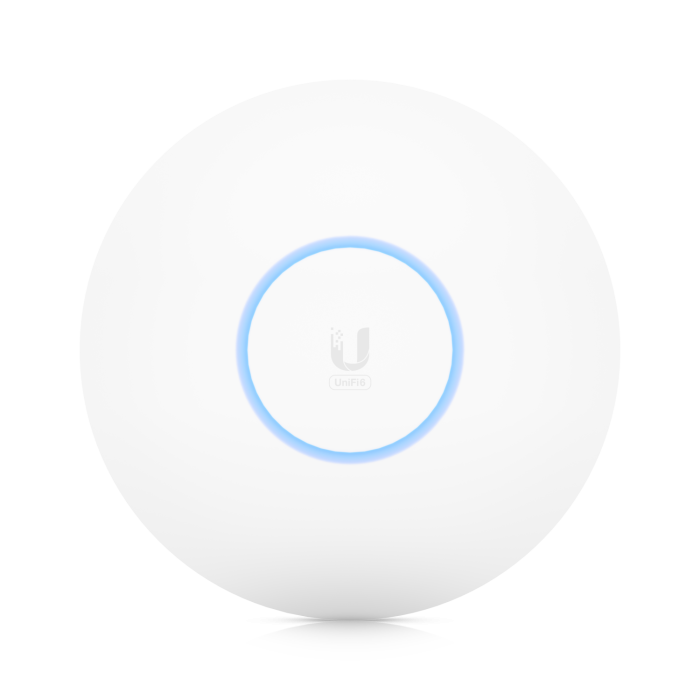

The WiFi 6 Pro Access Point (U6 Pro) is a high-performance dual-band WiFi 6 access point, ideal for home and office use.
The U6 Pro is capable of achieving a total throughput of up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands, allowing it to support more than 300 simultaneously connected clients at the same time while maintaining a consistent and reliable wireless experience across the entire network.
It can also isolate your guest traffic to ensure optimal security and speed.
The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-performance wireless uplinks and enable faster data transfer.
You can set it up in minutes and fully manage it with the UniFi Network app.
Features:
Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with 4.8 Gbps throughput
2.4 GHz (2x2 MU-MIMO and OFDMA) band with 573.5 Mbps throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
Capacity of 300+ concurrent clients
Roaming traffic isolation to improve wireless network security and reduce traffic congestion
Universal mounting plate, backing plate and screw kit included
Specifications:
Mechanical
Dimensions
Ø197 x 35 mm (Ø7.76 x 1.38")
Weight
Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)
Enclosure material
Plastic
Mounting material
SGCC steel
Weatherproofing
IP54
Hardware
Management interfaces
Ethernet
Bluetooth
Networking interface
(1) GbE RJ45 port
Button
Factory reset
LED*
White/blue
*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue colour modes.
Power method
PoE+
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range
44 to 57VDC
Max. power consumption
13W
Max. TX power
2.4 GHz
22 dBm
5 GHz
26 dBm
MIMO
2.4 GHz
2 x 2 (UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
573.5 Mbps
5 GHz
4.8 Gbps
Antenna gain
2.4 GHz
4 dBi
5 GHz
6 dBi
Mounting
Wall/ceiling (included)
Operating temperature
-30 to 60° C (-22 to 140° F)
Operating humidity
5 - 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Zero wait DFS
Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
