Design
Form factor: Turret
IK code: IK08
Protection features: Vandal proof, Weatherproof
International Protection (IP) code: IP66
Housing material: Aluminium, Polycarbonate (PC)
Product colour: Black
Mounting type: Ceiling/wall
Weatherproof: Yes
Power
Power consumption (max): 20 W
Power source type: PoE
Operational conditions
Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 10 - 90%
Management features
Reset button: Yes
Web-based management: Yes
Cloud-managed: No
Weight & dimensions
Weight: 990 g
Diameter: 11.8 cm
Height: 111 mm
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth: No
Wi-Fi: No
System requirements
Mobile operating systems supported: iOS, Android
Certification: FCC, IC, CE
Performance
Connectivity technology: Wired
Processor model: ARM Cortex-A53

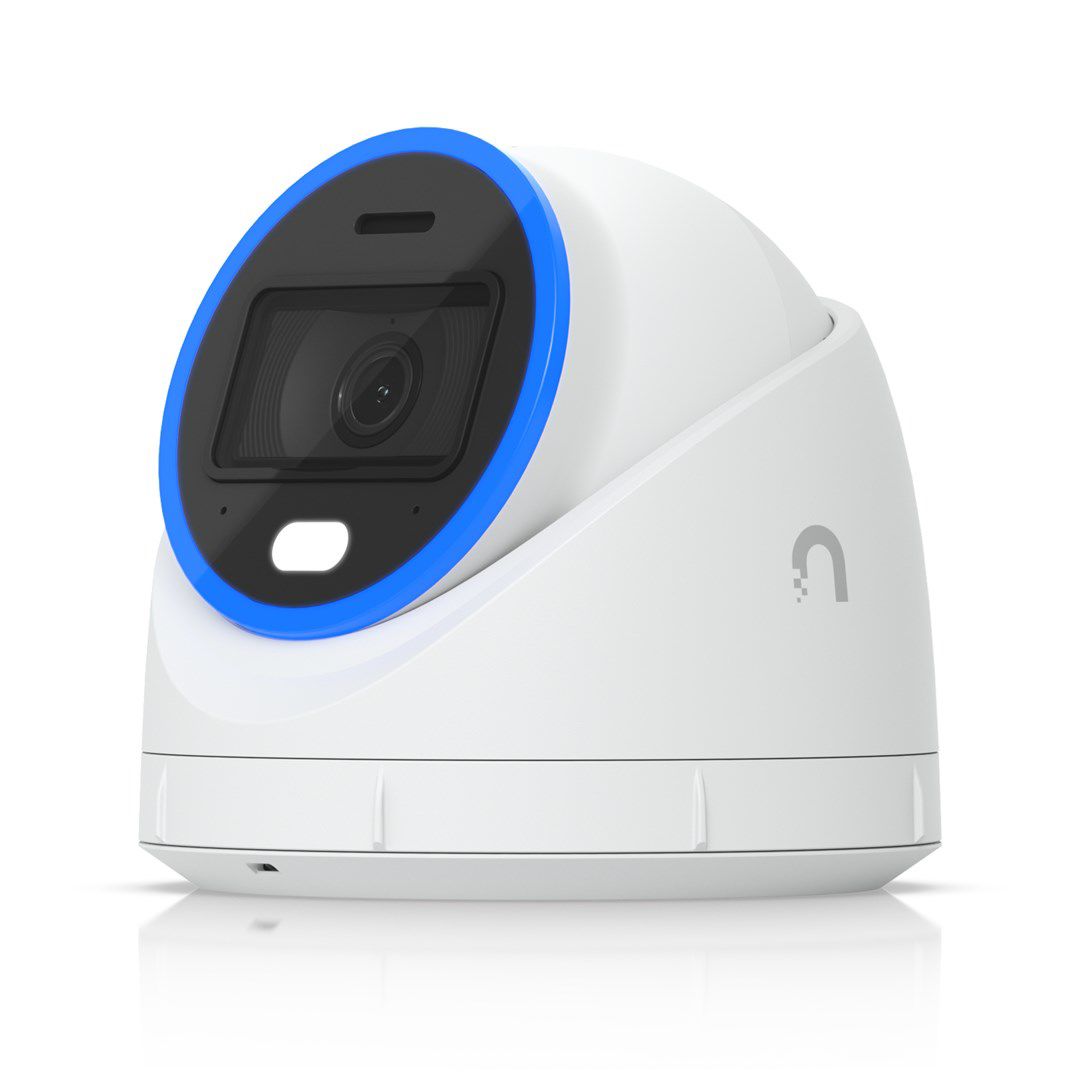

Type: IP security camera
Built-in processor: Yes
Infrared (IR) cut-off filter: Yes
Placement supported: Indoor & outdoor
Packaging content
Mounting kit: Yes
Manual: Yes
Number of cameras: 1
Audio
Audio system: 2-way
Built-in microphone: Yes
Built-in speaker(s): Yes
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Camera pan control: Yes
Camera tilt control: Yes
Lens viewing angle, horizontal: 109.9°
Lens viewing angle, vertical: 56.7°
Lens viewing angle, diagonal: 134.1°
Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Video
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Frame rate: 30 fps
Noise reduction technology: 2D noise reduction, 3D noise reduction
Noise reduction: Yes
Night vision
LED type: IR
Night vision distance: 40 m
Night vision: Yes
Lens system
Fixed focus: Yes
