Design
Product colour: Black
International Protection (IP) code: IP66
Housing material: Aluminium, Polycarbonate (PC)
Weatherproof: Yes
IK code: IK04
Mounting type: Wall/Pole
Protection features: Tamper resistant, Weatherproof
Form factor: Dome
Power
Power source type: PoE+, DC
Power consumption (max): 14 W
DC output voltage: 37, 57
Security
Intelligent Video Surveillance (IVS) system features: Pet detection, Vehicle detection, Human detection
Operational conditions
Operating temperature (T-T): -30 - 45 °C
Operating relative humidity (H-H): 0 - 90%
Management features
Reset button: Yes
Weight & dimensions
Weight: 580 g
Diameter: 15.2 cm
Height: 90 mm
Network
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Performance
Built-in light: Yes

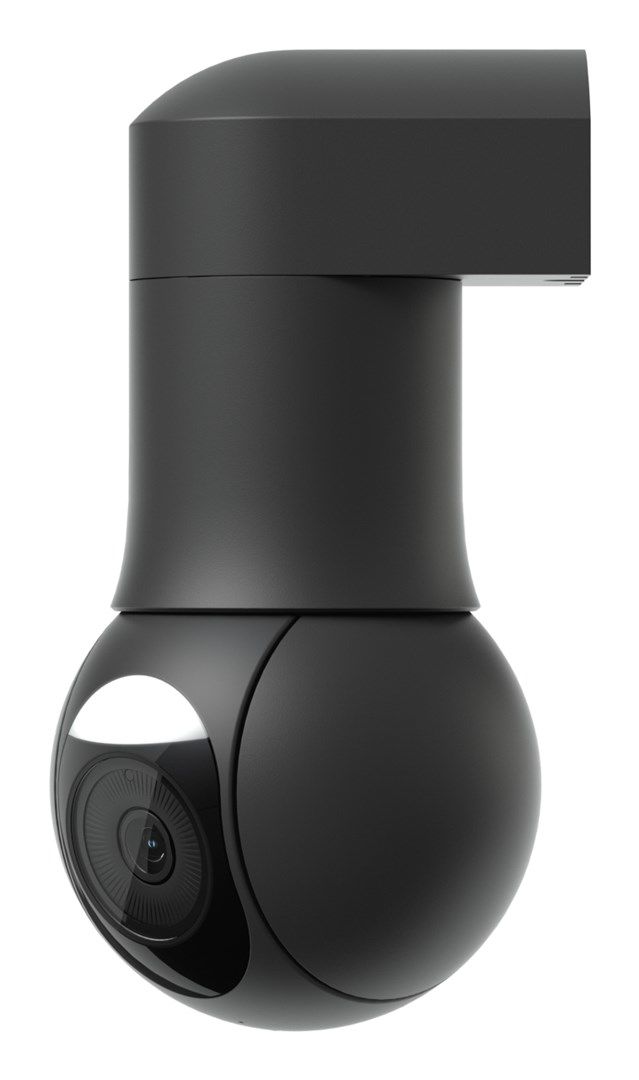

Type: IP security camera
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
PTZ control: Yes
Connectivity technology: Wired
Packaging content
Mounting kit: Yes
Number of cameras: 1
Screws included: Yes
Audio
Built-in microphone: Yes
Storage
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Tilt angle range: 0 - 100°
Pan range: 0 - 350°
Camera pan control: Yes
Camera tilt control: Yes
Lens viewing angle, vertical: 51.9, 25.4°
Lens viewing angle, horizontal: 99.7, 45.5°
Lens viewing angle, diagonal: 121, 52.4°
Image sensor
Number of sensors: 1
Sensor type: CMOS
Optical sensor size: 50.8 / 7 mm (2 / 7")
Video
Maximum resolution: 2688 x 1512 pixels
Frame rate: 30 fps
Total megapixels: 4 MP
Night vision
LED type: IR
Night vision: Yes
Night vision distance: 20 m
Lens system
Focal length range: 3.42–6.85
Zoom capability: Yes
Minimum aperture number: 1.85
Optical zoom: 2x
Maximum aperture number: 2.4
Sustainability
Compliance certificates: CE, National Defense Authorization Act (NDAA), Industry Canada (IC), Federal Communications Commission (FCC)
