Design
Protection features: Tamper resistant, UV resistant
IK code: IK04
Form factor: Turret
International Protection (IP) code: IP66
Housing material: Polycarbonate (PC), Aluminium
Mounting type: Ceiling/wall
Product colour: Black
Weatherproof: Yes
Power
AC input voltage: 37 - 57 V
Power consumption (typical): 4 W
Power source type: PoE
Operational conditions
Operating relative humidity (H-H): 0 - 90%
Operating temperature (T-T): -30 - 50 °C
Management features
Reset button: Yes
Weight & dimensions
Weight: 330 g
Diameter: 9 cm
Height: 71.2 mm
Cable length: 0.3 m
Network
Ethernet interface type: Fast Ethernet
Bluetooth: No
Ethernet LAN: Yes
Wi-Fi: No
Performance
Connectivity technology: Wired
Processor model: ARM Cortex-A7
Built-in processor: Yes

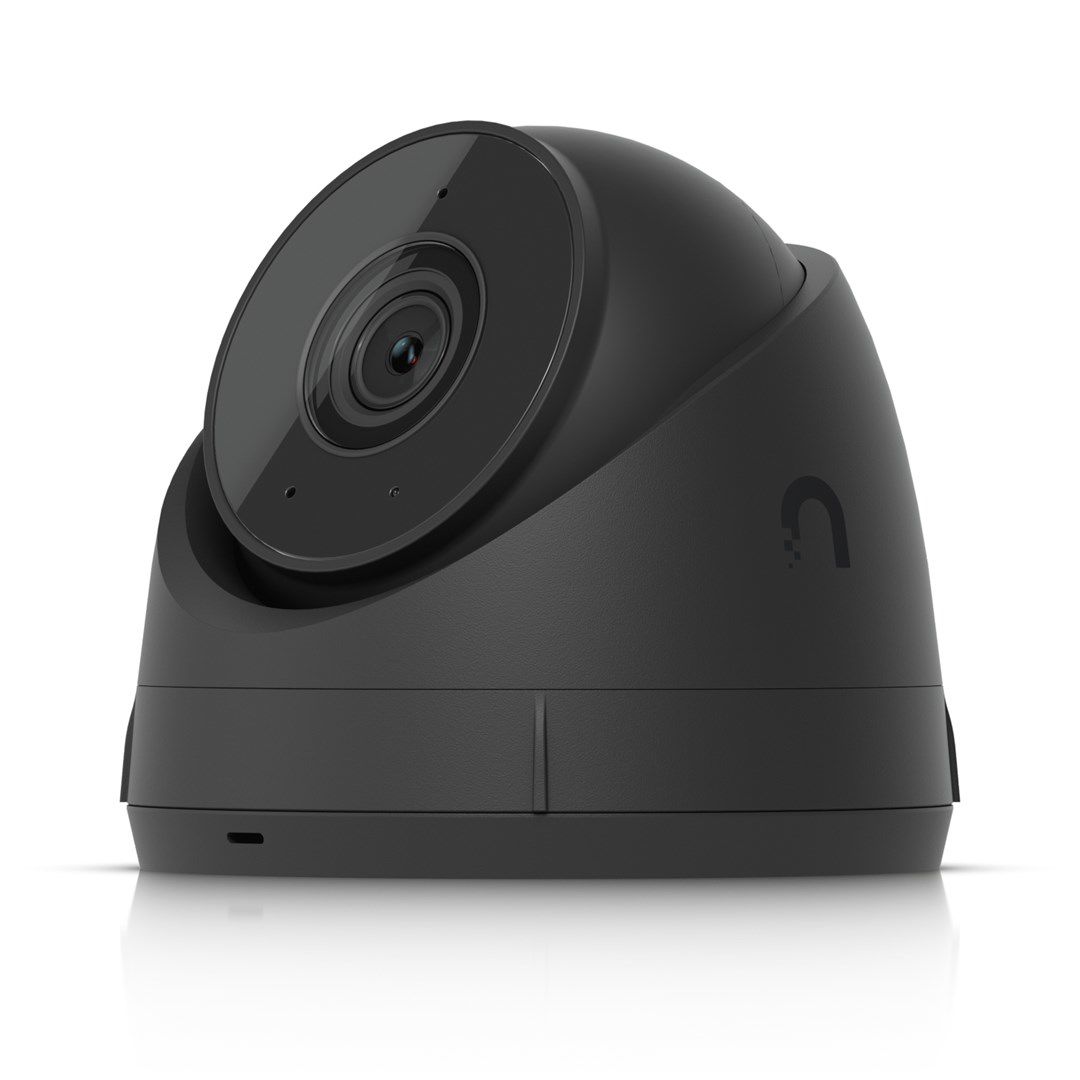

Type: IP security camera
Placement supported: Indoor & outdoor
Infrared (IR) cut-off filter: Yes
Day/night mode: Yes
Packaging content
Cables included: LAN (RJ-45)
Screws included: Yes
Mounting kit: Yes
Number of cameras: 1
Audio
Built-in microphone: Yes
Storage
Built-in HDD: No
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, vertical: 54.9°
Lens viewing angle, diagonal: 120.6°
Lens viewing angle, horizontal: 102.4°
Image sensor
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Sensor type: CMOS
Number of sensors: 1
Video
Total megapixels: 4 MP
Privacy masking: Yes
Maximum resolution: 2688 x 1512 pixels
Image quality adjustment: Sharpness, Brightness, DNR, Contrast, Colour depth
Text caption overlay: Yes
Frame rate: 30 fps
Video formats supported: H.264
Noise reduction: Yes
Noise reduction technology: 2D noise reduction, 3D noise reduction
Night vision
Night vision distance: 30 m
Night vision: Yes
LED type: IR
Lens system
Number of lenses: 1
Sustainability
Sustainability compliance: Yes
Compliance certificates: CE, Federal Communications Commission (FCC)
