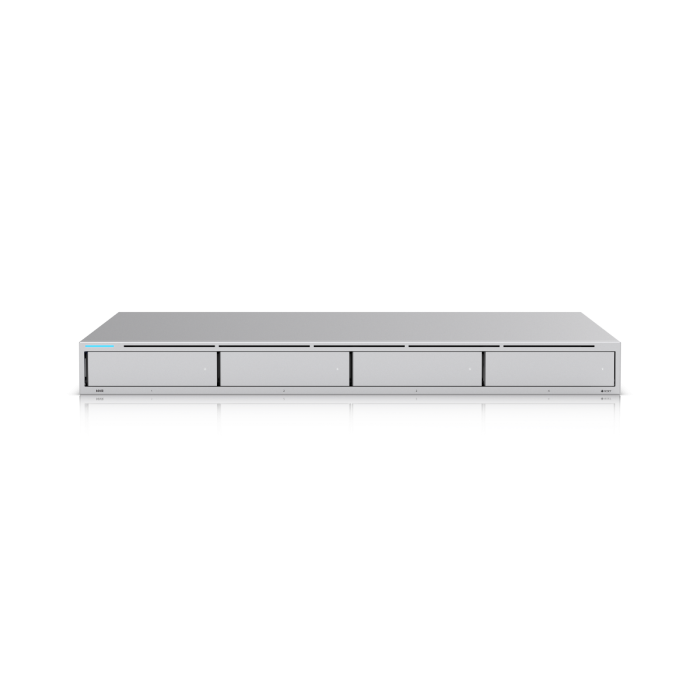

Ubiquiti Network Video Recorder

The Ubiquiti UNVR is a network recorder designed for use in UniFi Protect, where it provides central management and storage of video from UniFi cameras. The device includes four slots for 2.5" or 3.5" HDDs or SSDs, allowing for flexible storage configuration and the use of RAID technology to protect data.

The recorder can handle a large number of cameras and can manage up to 60 cameras in Full HD resolution or up to 18 cameras in 4K resolution. Recordings can be accessed via PC or mobile devices using the UniFi Protect app. The device also includes 10-gigabit SFP+ and gigabit Ethernet connectivity for fast connectivity and redundant power options for increased operational reliability.

Specifications:
Model.
Device Type: Network Video Recorder (NVR)
Software: UniFi Protect, UniFi Access
Maximum number of cameras: 60× Full HD, 30× 2K, 18× 4K
Disk slots: 4× 2.5" or 3.5" HDD/SSD
Processor: Quad-core ARM Cortex-A57, 1.7 GHz
Memory: 4 GB
Network connections:
1× 10G SFP+
1× Gigabit Ethernet RJ45
RAID support: yes (RAID configurations for data protection)
Power: 100-240 V AC, 50/60 Hz
USP-RPS DC backup power option
Maximum power consumption: 100 W
Maximum disk budget: 75 W
Enclosure: SGCC steel
Mounting: 19" rack, 1U
Dimensions: 442 × 325 × 44 mm
Weight:
5.1 kg without brackets
5.2 kg with brackets
Management: Ethernet (in-band management)
Certifications: CE, FCC, IC, SRRC, Anatel
