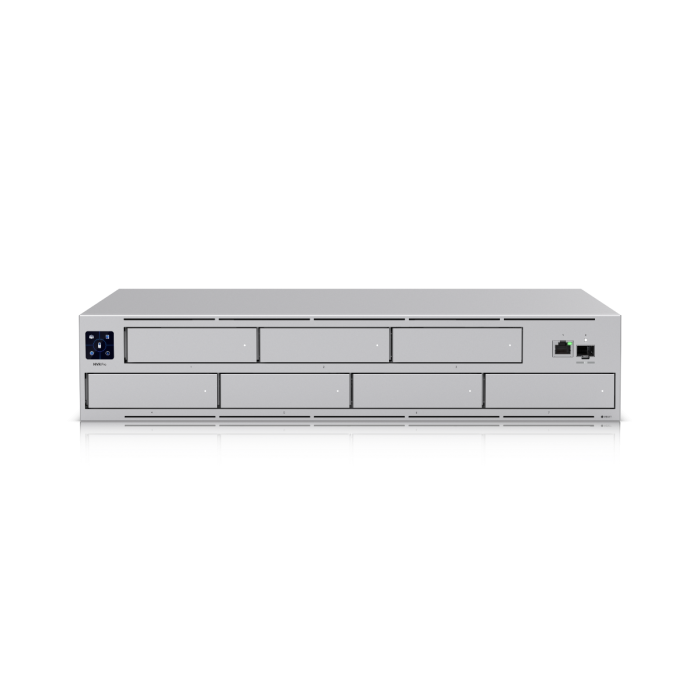

Ubiquiti Network Video Recorder Pro

Ubiquiti UNVR-Pro is an advanced video surveillance solution designed for demanding environments with multiple cameras and access control systems. The device supports up to 7 storage drives, allowing for high capacity and data protection. It is designed to be installed in a server rack (2U), allowing easy integration into professional systems.

It supports the management of high-resolution cameras and access control systems, ensuring stable operation and high availability thanks to redundant power supply. Integration with UniFi Protect and UniFi Access enables centralised monitoring, event visibility and efficient management of the security infrastructure.

Specifications:

• Dimensions: 442 x 325 x 87 mm
• Rack mount (2U) design.

Capacity

• Managed cameras:
• 70x HD
• 35x 2K
• 24x 4K
• Managed Access Hubs: 150
• Storage: 7x 2.5"/3.5" slots
• Data protection: yes
• Vantage Point: yes

Network interfaces

• 1x 10G SFP+
• 1x GbE RJ45

Functionality

• Access control support: yes
• Management: UniFi Protect, UniFi Access

Hardware

• 7x HDD/SSD (2.5"/3.5")
• Max. power for drives: 135 W
• Max. power: 160 W
• Power supply:
• AC input 100-240V
• USP-RPS DC input
• Power supply: internal 200 W
• Processor: Quad-core ARM Cortex-A57, 1.7 GHz
• Memory: 8 GB

Management

• Connectivity: Ethernet
• Display: 1.3" touch screen

Physical characteristics

• Material: SGCC steel
• Weight:
• Without brackets: 9.2 kg
• with brackets: 9.5 kg

Environment

• Operating temperature: -5 to 40 °C
• Humidity: 5-95 %

Other

• Redundant power supply: yes
• NDAA compliance: yes
• Certifications: CE, FCC, IC, Anatel

Official manufacturer website: https://eu.store.ui.com/eu/en/category/cameras-nvr/products/unvr-pro
