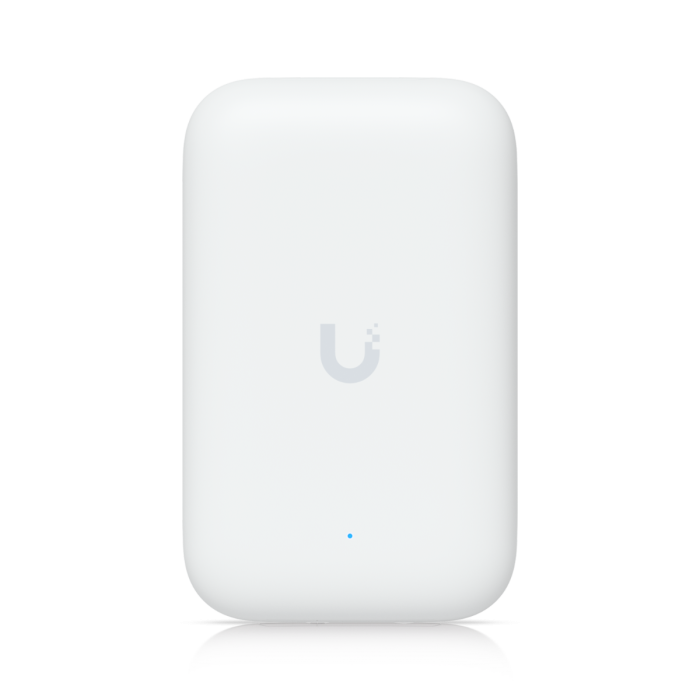

Ubiquiti Swiss Army Knife UK-Ultra Access Point

Ubiquiti UK-Ultra is a versatile access point designed for flexible deployment and stable wireless connectivity in a variety of environments. It supports Wi-Fi 5 technology with multiple spatial streams, enabling efficient operation even with a large number of connected devices.

With IPX6 protection, it is also suitable for outdoor use, while mesh network support makes it easy to extend coverage. The device includes advanced features such as fast roaming, radio resource management and security options for guests. Management is done via the UniFi Network platform, allowing centralised control and configuration.

Specifications:

• Dimensions: 137 x 84 x 34 mm
• Mounting: ceiling, wall, pole, table (brackets included)
• Protection: IPX6

Network

• Wi-Fi standard: Wi-Fi 5
• Spatial streams: 4
• Coverage: 115 m²
• Number of clients: 200+
• Uplink: 1x GbE RJ45

Capacity

• MIMO:
• 5 GHz: 2x2 MU-MIMO
• 2.4 GHz: 2x2 MU-MIMO
• Max. speed:
• 5 GHz: 866.7 Mbps
• 2.4 GHz: 300 Mbps
• Antenna gain:
• 5 GHz: 6.1 dBi
• 2.4 GHz: 4.7 dBi
• Max. transmit power:
• 5 GHz: 20 dBm
• 2.4 GHz: 20 dBm
• Max. BSSID: 8 per radio

Supported speeds

• 802.11ac: up to 866.7 Mbps
• 802.11n: up to 300 Mbps

Features

• Wireless mesh: yes
• Band steering: yes
• Fast roaming (802.11r): yes
• 802.11k/v support: yes
• Advanced radio management: yes
• Passpoint (Hotspot 2.0): yes

Roaming network

• Captive portal: yes
• Flexible landing page: yes
• Voucher authentication: yes
• Payment authentication: yes
• External portal: yes
• Password (PSK): yes
• Guest isolation: yes
• PPSK: yes

Advanced features

• Speed limiting: yes
• Device isolation: yes
• Wi-Fi schedules: yes
• RADIUS over TLS: yes
• Dynamic VLAN: yes

Hardware

• Power: PoE
• Max. power consumption: 8 W
• Voltage: 44-57 V DC
• Network interface: 1x GbE RJ45

Physical characteristics

• Weight: 173 g
• Material: UV stabilised polycarbonate
• Antennas:
• 1x internal
• 2x RP-SMA connector

Environment

• Operating temperature: -40 to 60 °C
• Humidity: 5-95 %

Other

• LED indicators:
• Power: white/blue
• mesh signal: blue
• Frequency bands:
• 2.4 GHz: 2400-2483.5 MHz
• 5 GHz: 5150-5850 MHz
• NDAA compliance: yes
• Certifications: CE, FCC, IC, Anatel

Software

• Requirements: UniFi Network 7.5.187 or later

Official manufacturer website: https://eu.store.ui.com/eu/en/category/wifi-outdoor/products/uk-ultra
