Features
International Protection (IP) code: IPX6
Power LED: Yes
Processor frequency: 1500 MHz
LED indicators: Signal strength, Status, GPS, Power, LAN
Processor model: Cortex-A53

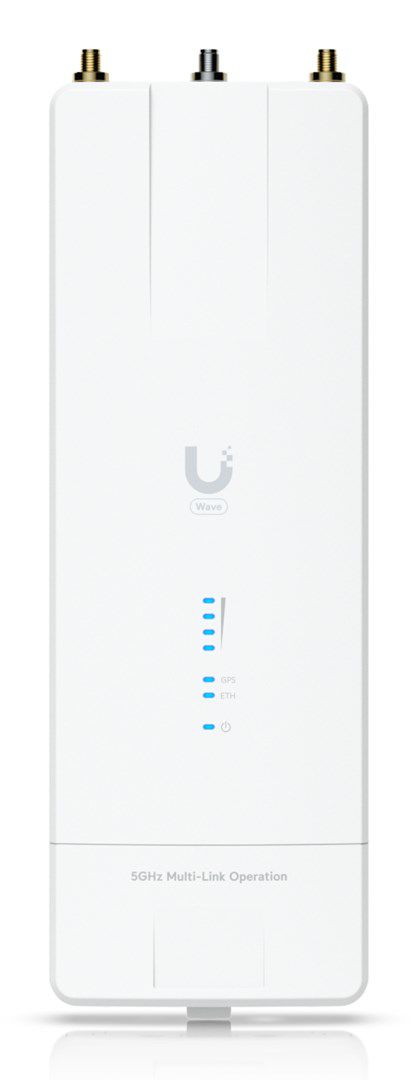

Product type: Network bridge
Processor manufacturer: ARM
Processor family: ARM Cortex
Material: Aluminium, Polycarbonate (PC)
Mounting type: Pole
Internal memory: 1000 MB
Reset button: Yes
Product colour: White
RAM type: DDR4
Network Time Protocol (NTP) client: Yes
Power
Power over Ethernet (PoE): Yes
Power consumption (max): 20 W
DC input voltage: 44 - 54 V
Power source type: PoE
Security
Security algorithms: AES, WPA3-PSK
Operational conditions
Operating temperature (T-T): -40 - 140 °F, -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Weight: 575 g
Height: 249.3 mm
Width: 82 mm
Depth: 47.6 mm
Network
Ethernet LAN data rates: 100, 10, 1000 Mbit/s, 10000 Mbit/s
Ethernet LAN: Yes
Ethernet LAN interface type: 10 Gigabit Ethernet
Packaging data
Quantity per pack: 1 pc(s)
Wireless LAN features
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Frequency band: 5.18 - 5.745 GHz
Modulation: 16-QAM, BPSK, 4096-QAM, 256-QAM, 1024-QAM, QPSK, 64-QAM
Wi-Fi band: Single-band (5 GHz)
Wi-Fi: Yes
Certificates
Compliance certificates: Federal Communications Commission (FCC), CE, Industry Canada (IC)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Connectivity technology: Wired & Wireless
Antenna
Antenna type: 2x2
Antenna connector type: RP-SMA
Data transmission
Maximum data transfer rate: 5000 Mbit/s
Maximum transfer distance: 100000 m
