Design

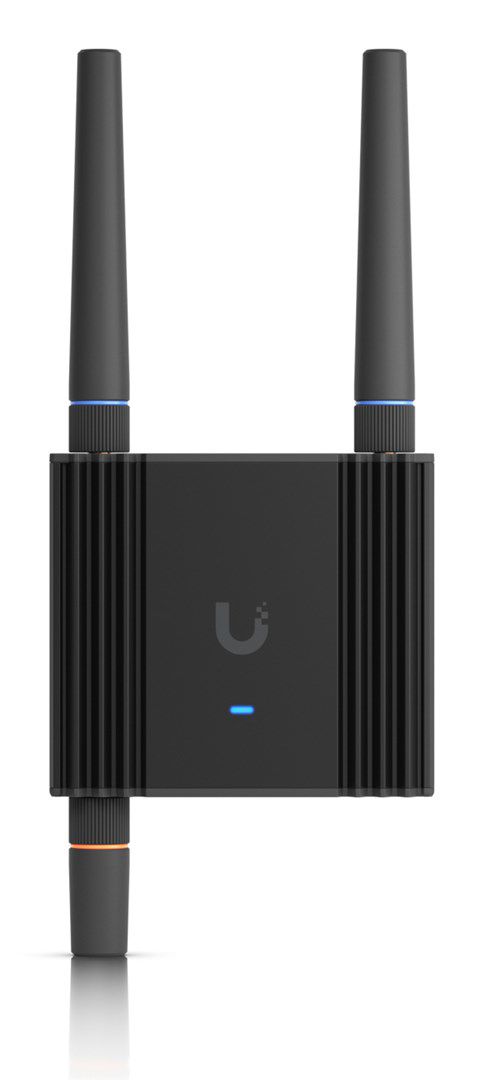

Device type: Cellular network router
Mounting: DIN-rail/Wall mounting
LED indicators: Status
Housing material: Aluminium, Polycarbonate (PC)
Reset button: Yes
Product colour: Black
Power
Power consumption (typical): 5.7 W
Input voltage: 5 - 30 V
Power source type: DC, USB
Operational conditions
Operating temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Depth: 26 mm
Height: 193.5 mm
Weight: 200 g
Width: 82 mm
Performance
Detachable antenna(s): Yes
Antenna type: External
Antennas quantity: 3
Antenna connector type: SMA/RP-SMA
Packaging data
User guide: Yes
Wireless LAN features
Wi-Fi frequency: 2.4 GHz
Wi-Fi: Yes
WLAN data transfer rates supported: 1, 36, 9, 11, 2, 48, 150 Mbit/s, 5.5, 6.5, 12, 24, 54, 6, 18
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), GCF, PTCRB
Ports & interfaces
USB port: Yes
Ethernet LAN (RJ-45) ports: 2
USB port type: USB Type-C
Mobile network
Data network: 4G
SIM card type: NanoSIM
Data transfer rate (LTE) (download): 150 Mbit/s
Number of SIM cards: 1
Data transfer rate (LTE) (upload): 50 Mbit/s
4G standard: LTE
Ethernet LAN features
Ethernet LAN: Yes
Ethernet LAN data rates: 100, 10
Ethernet LAN interface type: Fast Ethernet
