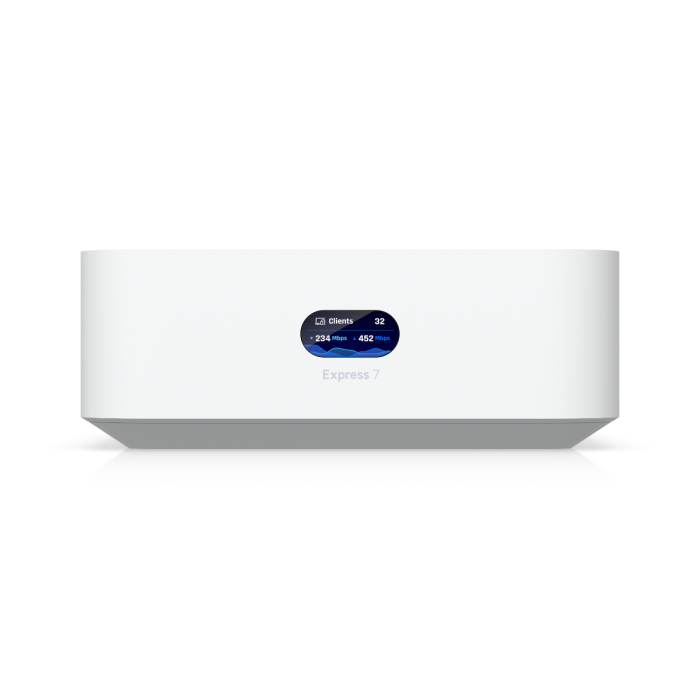

Ubiquiti UniFi Express 7

The compact UniFi gateway combines a powerful router, firewall and wireless access point in one device.

It supports the WiFi 7 standard and delivers speeds of up to 5.7 Gbps in the 6 GHz band. The device includes a 10 GbE WAN port and a 2.5 GbE LAN port for fast connectivity in modern networks. Integrated features such as advanced Layer 7 firewall, IDS/IPS protection, VPN server and SD-WAN support enable secure and flexible network management.

The system supports more than 300 simultaneously connected users and more than 30 managed UniFi devices. The compact desktop chassis and integrated status display allow for easy installation and operation overview.

Specifications:
Dimensions: 117 × 117 × 42.5 mm
Weight: 422 g
Design: compact desktop device
Housing material: polycarbonate
Network
UniFi application: UniFi Network
Supported UniFi devices: 30+
300+ concurrently connected users
Default WAN connector: 1× 10 GbE RJ45
LAN Connectors:
1× 2.5 GbE RJ45 (2.5G / 1G / 100M / 10M)
IDS/IPS throughput: 2.3 Gbps
Coverage: up to 160 m²
Security and network features
Stateful firewall: yes
Application-aware Layer 7 firewall: yes
DPI and traffic identification: yes
Advanced filtering (regions, domains, applications): yes
Content filtering: yes
Intrusion Prevention (IPS/IDS): yes
Ad blocking: yes
Number of IDS/IPS signatures: more than 20,000 (CyberSecure)
VLAN/subnet traffic segmentation: yes
Unlicensed SD-WAN: yes
VPN
Site-to-Site: Site Magic, IPsec, OpenVPN
VPN Server: Identity Endpoint One-Click VPN, Teleport, WireGuard, OpenVPN, L2TP
VPN Client: OpenVPN, WireGuard
Advanced network features
Dynamic routing: OSPF
Advanced QoS: Yes
Multicast DNS (mDNS): yes
Advanced NAT: SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT
Integrated RADIUS server: yes
RADIUS over TLS (RadSec): yes
Internet failover with UniFi LTE Backup: yes
Connection Quality Reporting: yes
Policy-based WAN and VPN routing: yes
Flexible DHCP server: yes
IPv6 ISP support: yes
IGMP proxy: yes
Virtual network override: yes
Wireless network
WiFi standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)
Transmission speed
6 GHz: up to 5.7 Gbps
5 GHz: up to 4.3 Gbps
2.4 GHz: up to 688 Mbps
MIMO
6 GHz: 2 × 2 DL/UL MU-MIMO
5 GHz: 2 × 2 DL/UL MU-MIMO
2.4 GHz: 2 × 2 DL/UL MU-MIMO
Antenna gain
6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 4 dBi
Maximum transmit power
6 GHz: 24 dBm
5 GHz: 26 dBm
2,4 GHz: 23 dBm
Wireless security
WPA-PSK
WPA-Enterprise (WPA / WPA2 / WPA3 / PPSK)
Maximum BSSID
4 per radio (Gateway mode)
4 per radio (AP mode)
Supported download speeds
802.11be (WiFi 7): 7.3 Mbps - 5.7 Gbps
802.11ax (WiFi 6/6E): 7.3 Mbps - 2.4 Gbps
802.11ac: 6.5 Mbps - 1.7 Gbps
802.11n: 6.5 Mbps - 300 Mbps
802.11g: 6 - 54 Mbps
802.11b: 1 - 11 Mbps
802.11a: 6 - 54 Mbps
Hardware
Processor: Quad-core ARM Cortex-A53 1.5 GHz
System memory: 3 GB
Display: 0.96" status LCM
Power
Power mode: USB-C (5 V DC / 5 A)
Power adapter: USB-C adapter included
Supported Voltage: 100-240 V AC
Maximum power consumption: 22 W
Heat dissipation: 75 BTU/h
Management
Ethernet: yes
Bluetooth: yes
LED indicator: Ethernet
Button: 1× factory reset
Protection and environment
ESD/EMP protection: air ±8 kV, contact ±4 kV
Operating temperature: -10 to 40 °C
Operating humidity: 5-95 % non-condensing
Standards and compliance
NDAA: yes
Certifications: CE, FCC, IC, Anatel
Additional features
VLAN: 802.1Q
Roaming traffic isolation: yes
Required Application: UniFi Network 9.0.108 or later

Official manufacturer website: https://eu.store.ui.com/eu/en/category/cloud-gateways-wifi-integrated/products/ux7
