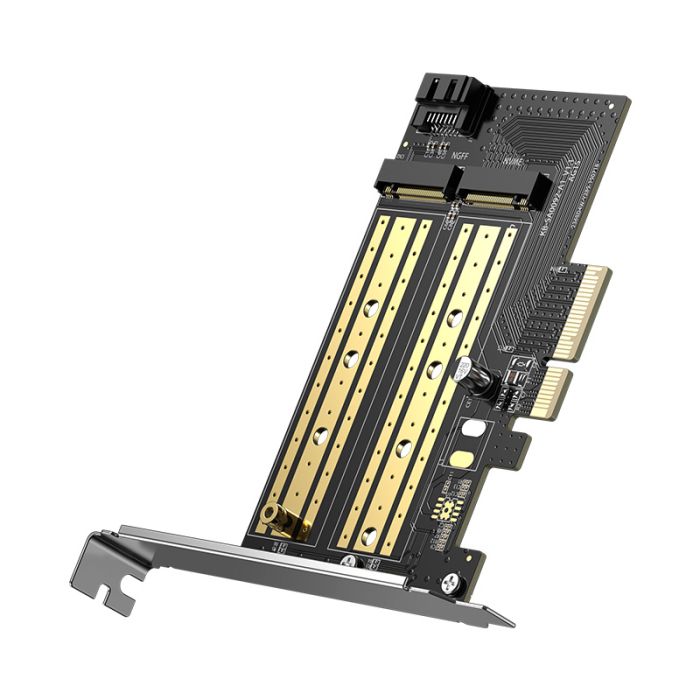

Ugreen 70504 M2 /M.2 NVME to PCI-E 3.0 expansion card with M.2 SATA support

UGREEN 70504 PCIe to M2 adapter M.2 NVME to PCI-E 3.0 expansion card with M.2 SATA support and 32Gbps/6Gbps data transfer

Maximum speed 32 Gbps: 0.7 s for 1 GB transfer
Compatible with PCIe x4/x8/x16
Supports 4 SSD sizes: 2230, 2242, 2260, 2280
LED indicator light: always on when connected to power; flashes during read or write operations

Technical specifications:
Input: M.2 M-Key, M.2 B-Key
Output: PCI-E 3.0*4, 7-pin SATA
Supported hard drive specifications: 2230/2242/2260/2280 M.2 SSD (NVME/SATA protocol)
Transfer speed: PCI-E 32Gbps interface, SATA 6Gbps interface
Supported system: Windows/Linux

A SATA 3.0 cable is required to power and operate this card properly.

The CM302 card works with Windows, Linux, and MacOS operating systems. The product is equipped with a PCIe 3.0 x4 interface.

The set includes:
1 x PCIe to M2 adapter
1 x plate for mounting on the case
1 x screwdriver
5 x Set of screws
1 x Chinese and English manual
