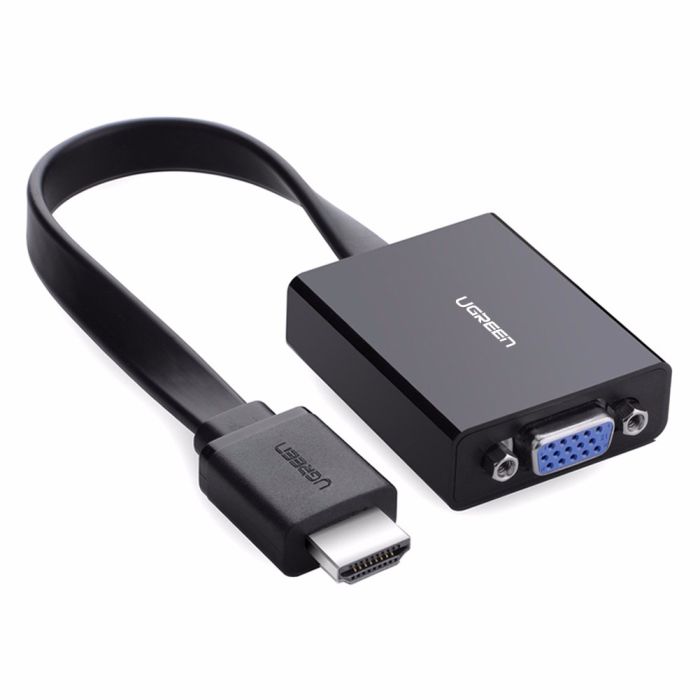

Ugreen HDMI to VGA + 3.5MM Audio+MicroUSB Converter Black - box

The Ugreen HDMI to VGA Converter allows you to connect your notebook, laptop, Chromebook, Rasberry Pi, HD DV with HDMI interface to a projector, LCD, TV, and monitor with VGA interface for large screen viewing. It supports resolutions up to 1920x1080 @ 60Hz and provides a 3.5mm audio line-in jack for simultaneous audio and video playback.

When the source device cannot provide enough power, you can connect a micro USB cable for additional power, such as the 2014 Mac Mini, Android Smart TV Box, etc.

The difference from other brands - the Ugreen HDMI-VGA converter has an audio output.

Specifications

1. Input interface: HDMI male / micro USB

2. Output interface: VGA female, 3.5 mm audio

3. Supported video output in VGA: 1920 * 1080 @ 60Hz (Max)

4. Additional power supply from Micro USB connector

5. Cable length: 16 cm

6. Support HDMI input resolutions: 480p, 576p, 720p, 1080i, 1080p

Supported VGA output resolutions: 1024X768, 1280X720, 1280X768, 1280X800, 1280X1024, 1360X768, 1600X1200, 1920X1080

Note

1.This adapter is not bidirectional and can only support signals from HDMI devices to VGA displays. For VGA source devices for HDMI converters, check out the VGA to HDMI converter item (ASIN: B00QUWEBXE & B00QUWEC06)

2. Micro USB cables are included for MacBook Pro with Retina Display, Smart TV Box, Raspberry Pi, and devices with low-power HDMI output. You can connect this micro USB cable to a power adapter or USB port on your PC for additional power.

3. For Raspberry Pi, you may need to review config.txt and restart your computer.
