Design
Mounting type: Ceiling/wall
Housing material: Metal
Form factor: Turret
Product colour: White
International Protection (IP) code: IP67
Power
DC output voltage: 12
Power consumption (max): 5 W
Power source type: DC, PoE
Security
Video motion detection: Yes
Operational conditions
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -30 - 60 °C
Management features
Web browser: Yes
Web-based management: Yes
Weight & dimensions
Diameter: 11.1 cm
Height: 94.1 mm
Weight: 440 g
Network
Supported network protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af
Bluetooth: No
Quality of Service (QoS) support: Yes
Performance
Placement supported: Outdoor
Infrared (IR) cut-off filter: Yes
Dynamic range: 120 dB
Connectivity technology: Wired

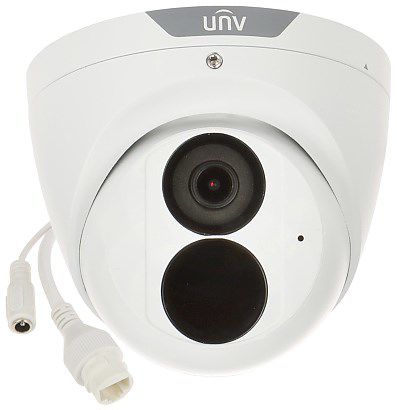

Type: IP security camera
Wide Dynamic Range (WDR): Yes
Packaging content
Number of cameras: 1
Audio
Bit rate range: 128 - 16000 Kbit/s
Signal-to-Noise Ratio (SNR): 56 dB
Sample rate: 8 kHz
Audio formats supported: G.711
Built-in microphone: Yes
Storage
Maximum memory card size: 256 GB
Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Card reader integrated: Yes
Ports & interfaces
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 1
Camera
Lens viewing angle, vertical: 60.1°
Lens viewing angle, horizontal: 112.4°
Lens viewing angle, diagonal: 146.1°
Pan range: 3 - 360°
Adjustment shutter speed: Auto/Manual
Camera pan control: Yes
White balance: Auto, Sodium lamp, Outdoor, Fine
Camera tilt control: Yes
Angle of rotation: 360°
Minimum illumination: 0.01 lx
Camera shutter type: Electronic
Camera shutter speed: 1 - 1/100000 s
Tilt angle range: 0 - 80°
Logistics data
Harmonized System (HS) code: 85258900
Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Video
Back Light Compensation (BLC): Yes
Video compression formats: H.264, H.265, M-JPEG
Region of Interest (ROI) encoding: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 8 MP
Privacy masking: Yes
Smart IR: Yes
Supported graphics resolutions: 352 x 288, 720 x 576, 2560 x 1440, 1920 x 1080 (HD 1080), 3072 x 1728, 704 x 288, 640 x 360, 3840 x 2160, 1280 x 720 (HD 720)
Maximum resolution: 3840 x 2160 pixels
Night vision
LED type: IR
Infra-red wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m
Lens system
Identify distance: 8.4 m
Detect distance: 84 m
Observe distance: 33.6 m
Recognize distance: 16.8 m
Zoom capability: No
Focus adjustment: 2.0
Fixed focal length: 2.8 mm
