Features Input operation voltage (max): 240 V UPS topology: Double-conversion (Online) Output power capacity: 1.5 kVA Maximum current: 10 A Power factor: 1 Efficiency: 93% Input operation voltage (min): 208 V Power source type: AC Output power: 2000 W Detachable power cord: Yes Efficiency (ECO mode): 98%

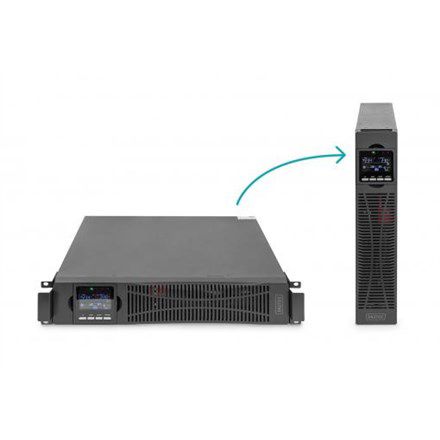

Design Product colour: Black Cooling type: Active Display type: LCD Form factor: Rackmount Built-in fan: Yes
Operational conditions Operating altitude: 0 - 1500 m Operating temperature (T-T): 0 - 40 °C Operating relative humidity (H-H): 20 - 90% Storage temperature (T-T): -25 - 55 °C Storage relative humidity (H-H): 20 - 90%
Weight & dimensions Weight: 19.5 kg Depth: 460 mm Height: 86.5 mm Width: 440 mm
Packaging data Package height: 200 mm Package width: 555 mm Package volume: 66705.5 cm³
Packaging content Cables included: RS-232, USB cable Manual: Yes Rack mount kit: Yes
Ports & interfaces Power plug: C20 coupler Emergency Power Off (EPO) connector: Yes AC outlet types: C13 coupler Ethernet LAN (RJ-45) ports: 2 AC outlets quantity: 8 AC outlet(s) Serial interface type: RS-232 USB port: Yes USB port type: USB Type-B Serial ports quantity: 1
Battery Battery capacity: 9 Ah Number of batteries supported: 4 Battery voltage: 12 V Battery recharge time (90%): 4 h
