Technical details
Image lag time: 33.2 ms
Features
HDCP: Yes
On Screen Display (OSD): Yes
Noise level: 34 dB
On Screen Display (OSD) languages: English, Russian, Czech, Turkish, German, Italian, Dutch, Arabic, Portuguese, Hungarian, Spanish, Simplified Chinese, Vietnamese, Traditional Chinese, French, Korean, Polish, Indonesian, Thai, Finnish, Greek
Number of OSD languages: 22
Noise level (economic mode): 25 dB
Air filter: Yes
Interactive: No
HDCP version: 1.4
Design
LED indicators: Yes

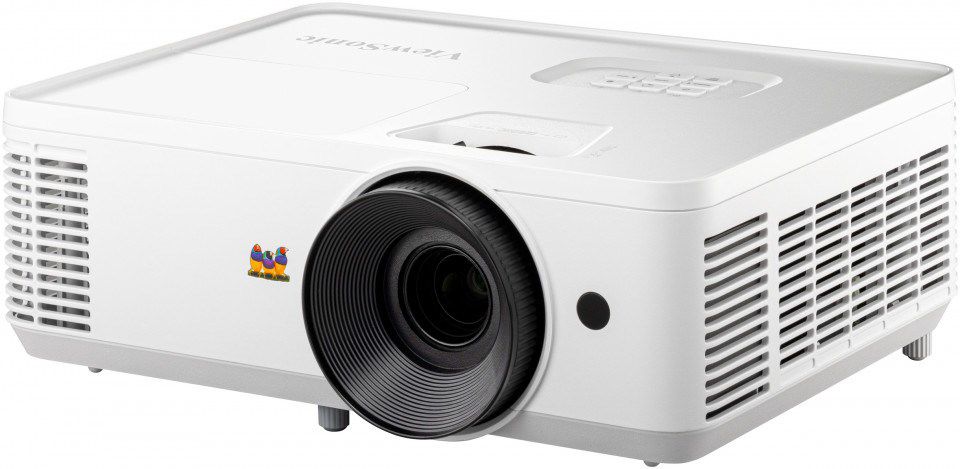

Product type: Standard throw projector
Market positioning: Education
Cable lock slot: Yes
Product colour: White
Cable lock slot type: Kensington
Power
AC input voltage: 100 - 240 V
Power consumption (standby): 0.5 W
Power source: AC
Power consumption (typical): 295 W
AC input frequency: 50 - 60 Hz
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Width: 309 mm
Package depth: 168 mm
Depth: 234 mm
Height: 115 mm
Package weight: 3.8 kg
Weight: 2.7 kg
Package width: 400 mm
Package height: 337 mm
Network
Ethernet LAN: No
Wi-Fi: No
Smart TV: No
Packaging content
Remote control included: Yes
Cables included: VGA, AC
Quick start guide: Yes
Remote control type: IR
Warranty card: Yes
Display
Built-in display: No
Multimedia
Number of built-in speakers: 1
RMS rated power: 3 W
Built-in speaker(s): Yes
Storage
Card reader integrated: No
Ports & interfaces
Service port type: USB Type-A
HDMI version: 1.4
USB 2.0 ports quantity: 1
VGA (D-Sub) ports quantity: 2
DVI port: No
HDMI ports quantity: 2
PC Audio in: Yes
PC in (D-Sub): Yes
AC (power) in: Yes
Serial interface type: RS-232
PC Audio out: Yes
HDMI connector type: Full-size
Logistics data
Products per master (outer) case: 1 pc(s)
Pallet gross length: 102 cm
Pallet gross width: 122 cm
Harmonized System (HS) code: 8528620000
Pallet gross height: 184.5 cm
Video
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes: 576i, 480p, 1080p, 480i, 720p, 1080i, 576p
Full HD: Yes
3D: No
Analog signal format system: PAL, SECAM, NTSC
Lens system
Focal length range: 21.85 - 24 mm
Zoom capability: Yes
Optical zoom: 1.1x
Focus: Manual
Digital zoom: 2x
Offset: 112.4%
Throw ratio: 1.544 - 1.72
Aperture range (F-F): 2.41 - 2.53
Projector
Horizontal scan range: 15 - 102 kHz
Vertical scan range: 23 - 120 Hz
Contrast ratio (typical): 12500:1
Projector native resolution: WXGA (1280x800)
Screen size compatibility: 762 - 7620 mm (30 - 300")
Keystone correction, vertical: -40 - 40°
Projector brightness: 4500 ANSI lumens
Projection distance: 1 - 11.11 m
Number of colours: 1.07 billion colours
Smart projector: No
Light source
Service life of light source: 4000 h
Service life of light source (economic mode): 12000 h
Lamps quantity: 1 lamp(s)
Light source type: Lamp
Lamp power: 240 W
Lamp type: UHP
