Technical details
Image lag time: 33.2 ms
Features
On Screen Display (OSD) languages: Turkish, Spanish, Russian, English, Thai, Simplified Chinese, German, Italian, Traditional Chinese, French, Czech, Korean, Dutch, Finnish, Arabic, Portuguese, Vietnamese, Hungarian, Polish, Indonesian, Greek
Noise level: 34 dB
On Screen Display (OSD): Yes
HDCP: Yes
Noise level (economic mode): 25 dB
Number of OSD languages: 22
HDCP version: 1.4
Air filter: Yes
Interactive: No
Design
Market positioning: Education
LED indicators: Yes
Product colour: White

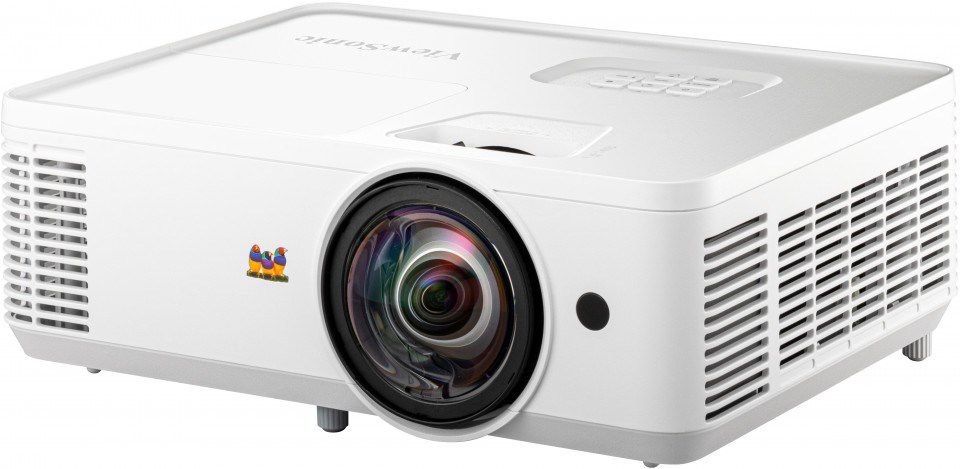

Product type: Short throw projector
Cable lock slot: Yes
Cable lock slot type: Kensington
Power
Power source: AC
AC input voltage: 100 - 240 V
Power consumption (typical): 295 W
Power consumption (standby): 0.5 W
AC input frequency: 50 - 60 Hz
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
Depth: 234 mm
Package height: 337 mm
Width: 309 mm
Package depth: 168 mm
Weight: 2.9 kg
Package width: 400 mm
Package weight: 4.1 kg
Height: 115 mm
Network
Ethernet LAN: No
Wi-Fi: No
Smart TV: No
Packaging content
Remote control included: Yes
Quick start guide: Yes
Cables included: VGA, AC
Remote control type: IR
Warranty card: Yes
Display
Built-in display: No
Multimedia
RMS rated power: 16 W
Built-in speaker(s): Yes
Storage
Card reader integrated: No
Ports & interfaces
Service port type: USB Type-A
HDMI version: 1.4
USB 2.0 ports quantity: 1
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 2
DVI port: No
PC Audio out: Yes
HDMI connector type: Full-size
PC in (D-Sub): Yes
Serial interface type: RS-232
AC (power) in: Yes
USB 2.0 Type-A ports quantity: 1
PC Audio in: Yes
Logistics data
Products per master (outer) case: 1 pc(s)
Pallet gross length: 102 cm
Harmonized System (HS) code: 8528620000
Pallet gross width: 122 cm
Pallet gross height: 181.5 cm
Video
Supported video modes: 480i, 480p, 1080p, 576i, 1080i, 576p, 720p
Analog signal format system: NTSC, PAL, SECAM
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Full HD: Yes
3D: No
Lens system
Digital zoom: 2x
Focus: Manual
Fixed focal length: 7.51 mm
Zoom capability: Yes
F-number (relative aperture): 2.8
Offset: 112.4%
Throw ratio: 0.52
Projector
Vertical scan range: 23 - 120 Hz
Horizontal scan range: 15 - 102 kHz
Contrast ratio (typical): 15000:1
Number of colours: 1.07 billion colours
Keystone correction, vertical: -19 - 19°
Projection distance: 0.67 - 3.36 m
Screen size compatibility: 1524 - 7620 mm (60 - 300")
Projector brightness: 4000 ANSI lumens
Projector native resolution: WXGA (1280x800)
Smart projector: No
Light source
Service life of light source (economic mode): 12000 h
Light source type: Lamp
Service life of light source: 4000 h
Lamp power: 240 W
Lamp type: UHP
Lamps quantity: 1 lamp(s)
