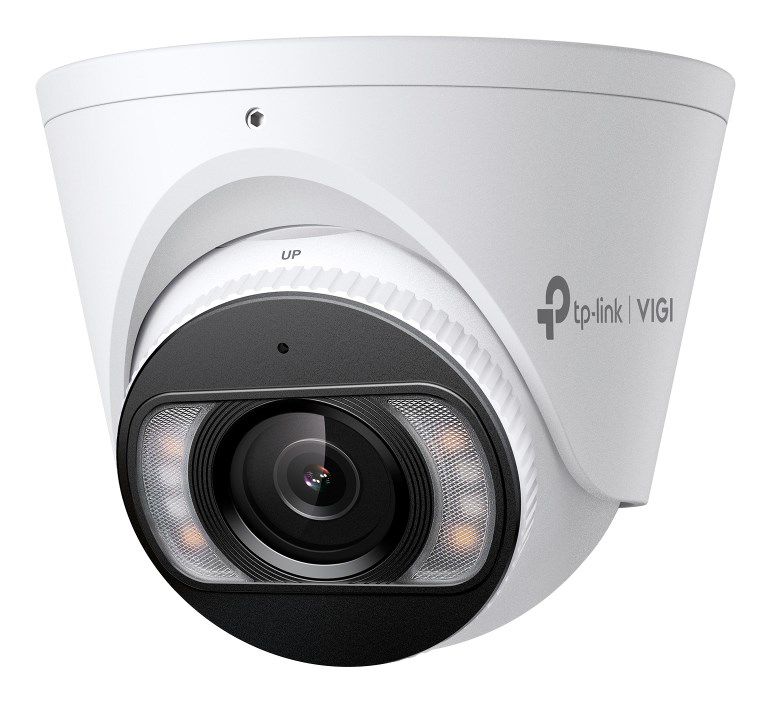

VIGI 8MP Turret Network Camera Full-color 4mm

Design
Form factor: Turret
Protection features: Waterproof
International Protection (IP) code: IP67
Mounting type: Ceiling
Housing material: Metal
Weatherproof: Yes
Product colour: White

Power
Power consumption (max): 11.5 W
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 12.5 W

Security
HTTPS encryption: Yes
Video motion detection: Yes
Mirror: Yes
IP address filtering: Yes
Alert notification type: Push notification
Password protection: Yes
Built-in siren: Yes
Motion sensor: Yes

Operational conditions
Storage relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Reset button: Yes
Web browser: Yes
Cloud-managed: Yes
Web-based management: Yes

Weight & dimensions
Weight: 480 g
Length: 111 mm
Width: 111 mm
Height: 83.7 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view: Yes
Networking standards: IEEE 802.3at, IEEE 802.3af
Bluetooth: No

Performance
Type: IP security camera
Day/night mode: Yes
Remote viewing: Yes
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Maximum operating distance: 107 m
Placement supported: Outdoor
Dynamic range: 120 dB
Connectivity technology: Wired

Packaging data
Package type: Box

Packaging content
Mounting kit: Yes
Screws included: Yes
Manual: Yes
Number of cameras: 1
Drilling template included: Yes

Audio
Audio system: 2-way
Built-in microphone: Yes
Audio input channels: 1.0 channels
Built-in speaker(s): Yes
Sample rate: 8 kHz
Audio formats supported: G.711 A-law
Number of microphones: 1
Bit rate range: 0 - 64 Kbit/s
Audio output channels: 1.0 channels

Storage
Maximum memory card size: 512 GB
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Camera
Camera shutter speed: 1/3 to 1/10000
Lens viewing angle, diagonal: 109.6°
Lens viewing angle, vertical: 46.1°
Lens viewing angle, horizontal: 91.5°
Tilt angle range: 0 - 90°

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Video
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 1280 x 720 (HD 720), 2048 x 1280, 2304 x 1296, 2560 x 1440, 3840 x 2160, 1920 x 1080 (HD 1080)
Video compression formats: H.264+, H.264, H.265, H.265+
Digital Wide Dynamic Range (DWDR): Yes
Total megapixels: 8 MP
Back Light Compensation (BLC): Yes
Image quality adjustment: Contrast, Mirror, Sharpness, Brightness, Saturation
Video recording: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC): Yes
Bit rate: Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Night vision
LED type: IR/White
Night vision: Yes

Lens system
Fixed focus: Yes
Maximum aperture number: 1.6
Observe distance: 44 m
Fixed focal length: 4 mm
Recognize distance: 21 m
Detect distance: 107 m
Identify distance: 11 m
