Design
Material: Plastic, Aluminium
Display type: LCD
Number of fans: 3 fan(s)
Product colour: Black
Fan connector: 4-pin
Display size (HxV): 69 x 69 mm
Number of fan blades: 7
Water block material: Copper/Plastic
Radiator material: Aluminum
Power
Fan current: 0.18 A
Fan voltage: 12 V
Pump current: 300 mA
Pump voltage: 12 V
Fan power consumption: 2.16 W
Weight & dimensions
Cable length: 0.6 m
Radiator depth: 2.7 cm
Waterblock height: 6.5 cm
Waterblock width: 9.35 cm
Tube length: 42 cm
Radiator height: 12 cm
Waterblock depth: 9.35 cm
Radiator width: 40.1 cm
Fan dimensions (W x D x H): 120 x 25 x 120 mm
Performance
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ 3
Quantity per pack: 1 pc(s)
Supported processor sockets: LGA 1151 (Socket H4), LGA 1851, LGA 1150 (Socket H3), Socket AM5, Socket AM4, LGA 1156 (Socket H), LGA 1700, LGA 1155 (Socket H2), LGA 1200 (Socket H5)

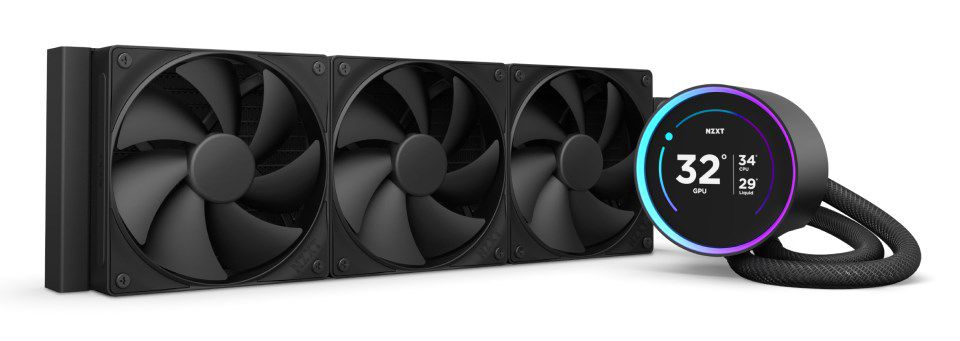

Type: All-in-one liquid cooler
Fan diameter: 12 cm
Maximum airflow: 73.47 cfm
Pulse-width modulation (PWM) support: Yes
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Suitable location: Processor
Pump motor speed (min): 1200 RPM
Maximum air pressure: 4.5 mmH2O
Fan noise level (max): 30 dB
Fan speed (max): 2000 RPM
Pump motor speed (max): 2800 RPM
Fan speed (min): 500 RPM
Fan's mean time to failure (MTTF): 60000 h
Other features
Built-in display: Yes
Tube material: Rubber
