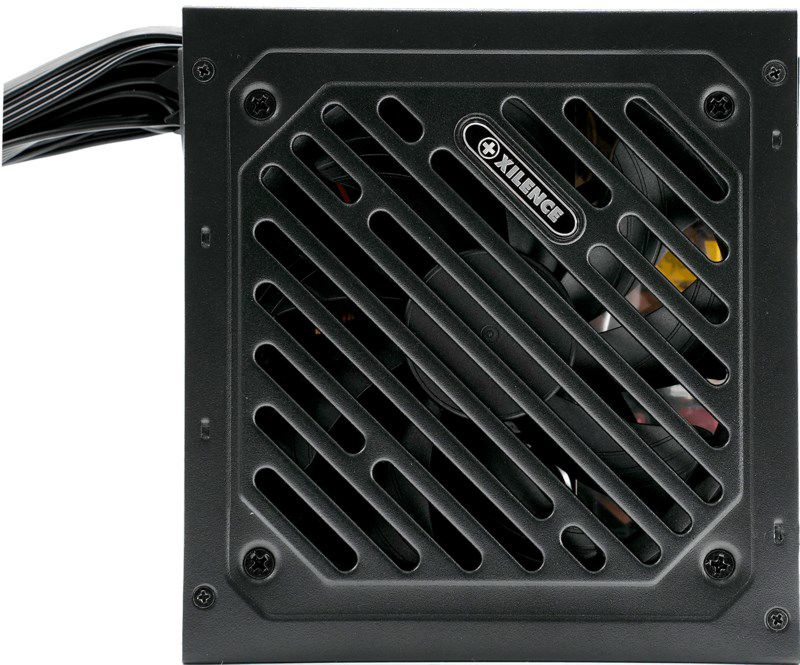

Design Product colour: Black On/off switch: Yes Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top
Power Power protection features: Under voltage, Short circuit, Over voltage, Over power AC input frequency: 50 Hz Input current: 6.3 A AC input voltage: 200 - 240 V Max output current (+12V): 62.5 A Combined power (-12V): 6 W Power Factor Correction (PFC) type: Active Combined power (+3.3V): 66 W Combined power (+5V): 100 W Total power: 750 W Combined power (+5Vsb): 15 W
Weight & dimensions Depth: 247 mm Height: 98 mm Weight: 2.3 kg Width: 198 mm
Performance Purpose: PC 80 PLUS certification: 80 PLUS Gold Supported motherboard form factors: ATX Bearing technology: HDB ATX version: 2.52 Silent mode: Yes Power supply unit (PSU) form factor: ATX
Ports & interfaces Floppy disk drive connector: No Number of SATA power connectors: 6 PCI Express power connectors (6+2 pin): 3 PCI Express connector: Yes Motherboard power connector: 20-pin ATX ATX power connector (20+4 pin): Yes CPU power connector (4+4 pin): Yes Motherboard power cable length: 5.5 cm Cabling type: Non-Modular
