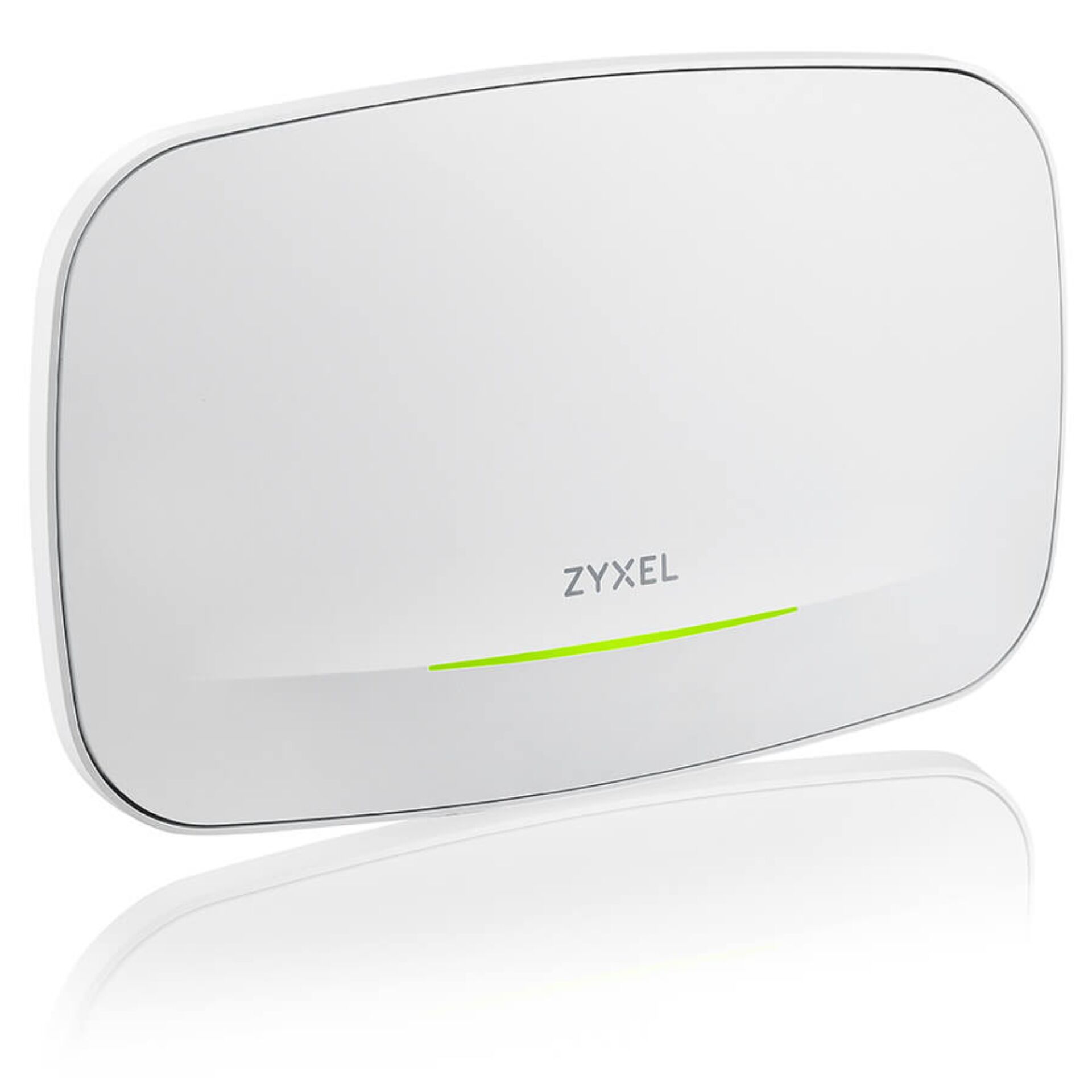

Zyxel NWA130BE NebulaFlex Access Point

Acess Point: Zyxel NWA130BE

Designed for the modern workplace, the NWA130BE is equipped with a Qualcomm quad-core CPU that enables WiFi 7 speeds of up to 11 Gbps.

Combined with the features of Zyxel's cloud management platform "Nebula", the new WiFi 7 AP offers a stable WLAN with high range and data throughput. Just the thing for modern workstations in companies, home offices or conference rooms.

The NWA130BE tri-radio access point (2x2 in 2.4, 5 and 6 GHz) offers WiFi 7 speeds of up to 11 Gbit/s and low latency times for real-time applications.

The device has two connections: one for the uplink and one for connecting another Ethernet device. Typically, the existing Ethernet cable can easily transmit 2.5G, providing a cost-effective solution for upgrades.

Optimised for 4K QAM (MCS-13): The rectangular design provides excellent antenna isolation and exceeds the efficiency of a round design.

The integrated 4G/5G interference filter enables seamless coexistence with 4G/5G cellular networks to ensure interference-free wireless performance.

NebulaFlex allows users to switch between standalone mode and the intuitively managed Nebula Cloud mode as needed.

Features:

• Standard: WLAN-7 (IEEE802.11 be/ax/ac/n/g/b/a)
• Wireless speed: 2.4 GHz: 688 Mbps / 5 GHz: 4324 Mbps / 6 GHz: 5764 Mbps
• Bandwidth: 20-, 40-, 80-, 160-, 240- and 320-MHz
• Ethernet connection: 2 x 1/2.5 Gbps LAN
• Power supply: PoE (802.3at) or DC input (12 VDC 2A)
• Internal antenna
• Antenna gain: 2.4 GHz: 3 dBi, 2X2:2SS / 5 GHz: 4 dBi, 2X2:2SS / 6 GHz: 4 dBi, 2X2:2SS
• Minimum reception sensitivity: Min. Rx sensitivity down to -99 dBm
• WLAN functions: Band steering, WDS/mesh, fast roaming (pre-authentication, PMK caching and 802.11r/k/v), DCS, load balancing, advanced cellular coexistence
• Encryption: WEP, WPA, WPA2-PSK, WPA3
• Authentication: WPA, WPA2-Enterprise, EAP, IEEE 802.1X, RADIUS authentication
• Access management: L2 isolation, MAC filtering, detection of rogue APs
• Networking: IPv6, VLANs, WMM, U-APSD
• Operating mode: Cloud-controlled, stand-alone,
• Web GUI access, SNMP
• Dimensions: 25 x 16 x 4.7 cm
• Weight: 808 g
