Zyxel XGS1210-12 V2

Zyxel XGS1210-12 V2

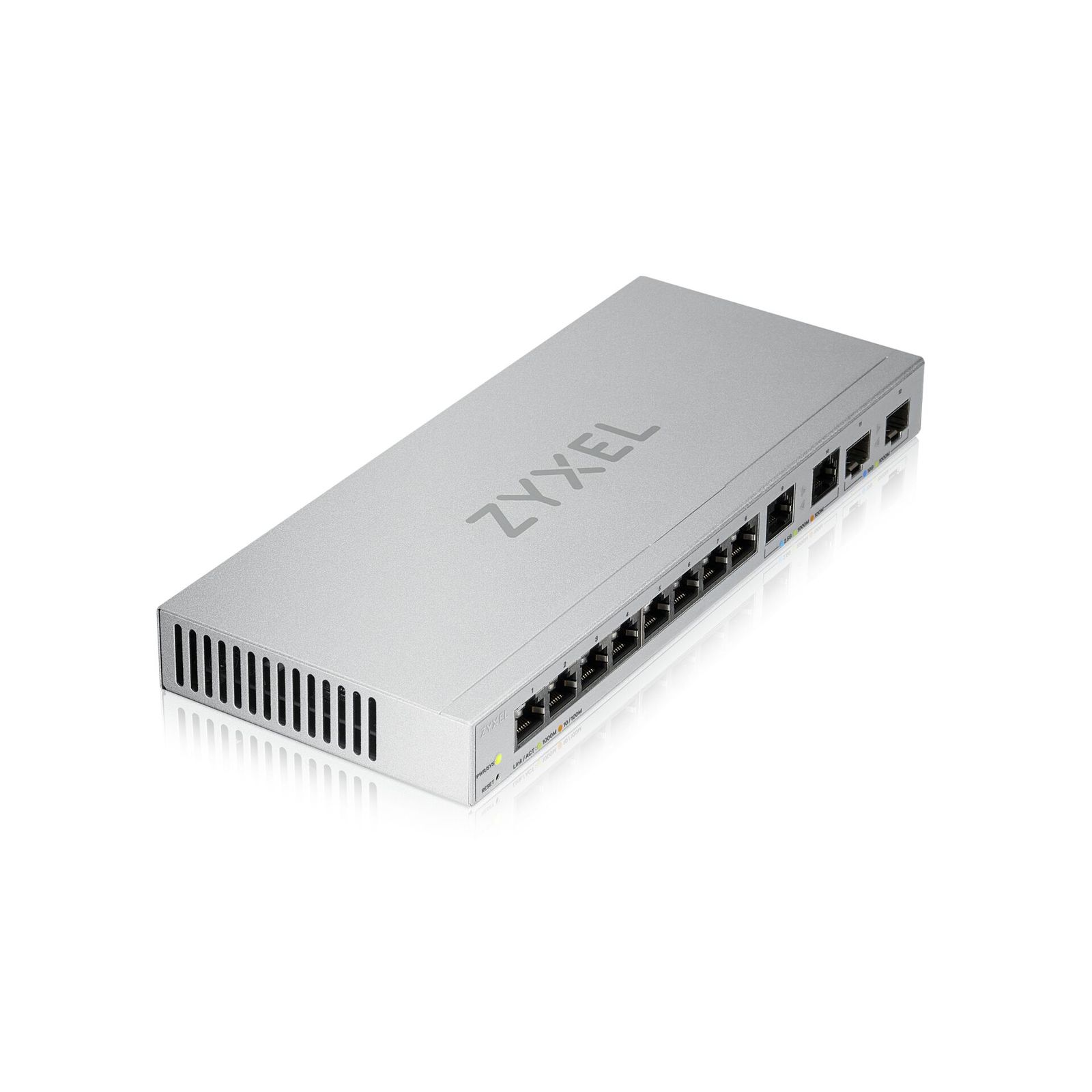

The 12-Port Web-Managed Multi-Gigabit Switch Zyxel XGS1210-12 comes with 2x 10 Gigabit SFP+ uplink ports, 2x 2.5 Gigabit ports, and 8x 1 Gigabit Ethernet ports. You can connect 802.11ac or 802.11ax access points to the 2.5 Gigabit ports for true maximum wireless speed delivery. Deliver your data swiftly to your client devices from your NAS or other core networking essential with 10 Gigabit SFP+. Use its built-in Web GUI to prioritize, limit, and protect your network traffic.

Features:

• Interface
  • • 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
  • • 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
  • • 2 x SFP+
  • • Hardware reset button
• Supported standards:
  • IEEE 802.3 10BASE-TX Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3bz 2500BASE-T Gigabit Ethernet
  • SFF-8431
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3x full duplex operation and flow control
• Performance:
  • Switching capacity: 66 Gbps
  • Switching forwarding rate: 49 Mpps
  • MAC address table: 16 K
  • Packet buffer: 1.5 MB
  • Jumbo frame support up to 12 KB
• Additional features:
  • Web-based management
  • Auto-MDI/MDIX in all ports
  • System password
  • VLAN (Port supported)
  • Port-based QoS
  • 802.1p QoS
  • Broadcast storm control
  • Loop detection/prevention
  • DHCP client
  • Static Link aggregation
  • Port mirroring
  • Weighted Round Robin (WRR) priority QoS
  • IGMP snooping v1/v2/and v3 compatible
  • Supported multicast groups: 128
• LED Indicators:
  • PWR: Power
  • Port 1~8 Link/Activity: Green (1000 Mbps), Amber (10/100 Mbps)
  • Port 9~10 Link/Activity: Sky Blue (2.5Gbps), Green (1Gbps), Amber (100Mbps)
  • Port 11~12 Link/Activity: Blue (10Gbps), Green (1000Mbps)
• Power Supply:
  • AC-to-DC external power adapter
  • Input: 100-240V~50-60Hz
  • Output: 12V DC/1.5A
• Dimensions (W x D x H): 25 x 10.4 x 2.7cm
• Weight: 768 g
