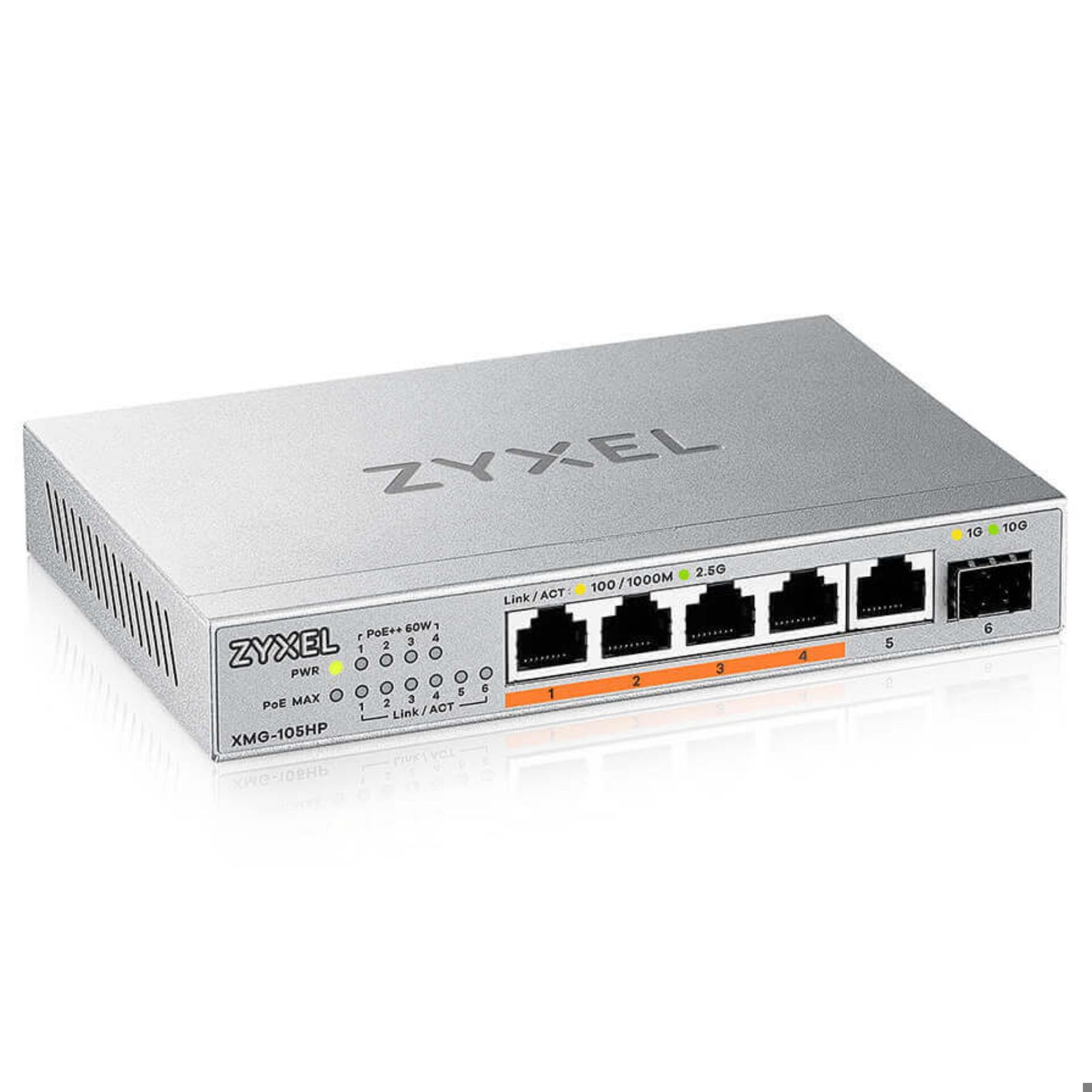

Zyxel XMG-105 5 Port 10 /2.5G PoE++ Switch

Zyxel XMG-105 5 Port 10/2.5G PoE++ Switch

Plug-and-play to Upgrade Your Network to WiFi 6/6E/7
The XMG-100 Series of 2.5G switches includes 5- and 8-port models with or without PoE options. These switches are equipped with multi-gig ports supported up to 2.5G and can easily be connected to the latest 2.5G–capable network devices including WiFi 6/6E/7 APs, 5G CPE, 2.5G storage, 4K/8K TV, PC with 2.5G NIC and gaming consoles. This streamlined plug-and-play technology enables high-performance networking and a smoother home entertainment or multi-media creation experience.

Extra 10G Port to Streamline Large File Transfers
The 10-Gigabit SFP+ model increases the network speed for quicker uploads and downloads through a NAS and server, allowing content creators or self-media individuals to work more efficiently. Large files, such as high-resolution videos or images, can be transferred in significantly less time, saving valuable production hours.

Single Cable for Both Power and Data
PoE models come with either 4 or 8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W or 100W – deploying PoE devices like WiFi 6/6E/7 APs, PTZ cameras and IoT devices has never been easier.

2.5G Super-Fast Speeds Without Re-cabling
You can use your current Cat 5e cables to increase your home networking speed from 1Gbps to 2.5Gbps, eliminating the need for any costly re-cabling.

Silent Operation and Flexible Deployment
The XMG-100 Series has a robust and fanless design for stable and silent operation, and is perfect for noise-free environments in the home or studio. Its compact design offers the flexibility to place the switch on a desktop or mount it on a wall.

Accelerate your Networking Experience
The XMG-100 Series offers home or SOHO users who need lag-free and non-intermittent network services for their online gaming or multimedia streaming services, a faster, more secure connection.

Features:

• Product name: 5-Port 2.5G PoE Unmanaged Switch with 10G Uplink
• Port Density:
  • Total port count: 6
  • 2.5G BASE-T: 5
  • 1G SFP/10G SFP+: 1
• PoE:
  • IEEE 802.3bt (PoE++, 60 W): 4
  • Total PoE budget (watts): 70
• Performance:
  • Switching capacity (Gbps): 45
  • Forwarding rate (Mpps): 33.5
  • Packet buffer (byte): 1 MB
  • MAC address table: 4 K
  • Jumbo frame (byte): 12 K
• Power:
  • Input: 100 - 240 V AC, 50/60 Hz
  • Power supply: External
  • Max. power consumption (watts): 90
  • Min. power consumption (watts): 1.62
• Physical Specifications:
  • Dimensions (WxDxH) (mm / in.): 160 x 110 x 26 / 6.30 x 4.33 x 1.02
  • Weight (kg / lb.): 0.492 / 1.09
• Fanless: Yes
